DJI Agras T50 (Build Your Own Kit)

Name: DJI Agras T50 (Build Your Own Kit)
Brand: DJI
SKU: CP.AG.00000806.04
Price: 19449.00 USD
Availability: InStock

(4.5) • 2 reviews

10.5 Gal /13.2 Gal (40L/50L) Capacity

52.6 Acres per Hour Coverage

6.3 gal/min (24 LPM ) Max Flow Rate

10 m/s Max Speed

36ft Max Swath

Binocular Vision and Dual Radar Safety

10.5 Gal /13.2 Gal (40L/50L) Capacity

52.6 Acres per Hour Coverage

6.3 gal/min (24 LPM ) Max Flow Rate

10 m/s Max Speed

36ft Max Swath

Binocular Vision and Dual Radar Safety

DJI Agras T50 (Build Your Own Kit)

(4.5) • 2 reviews

Full Price

$19,449.00

Pay in One Payment

Description

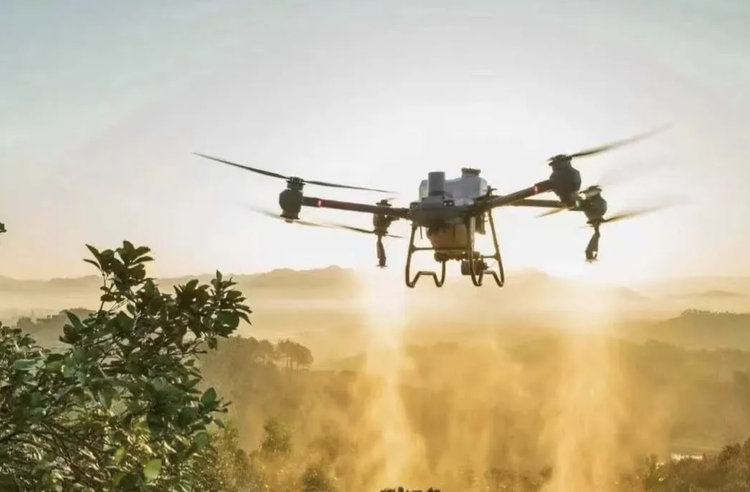

Revolutionized Agricultural Drone Operation brought by DJI Agras T50

High Capacity | Awesome Efficiency | Rotary Atomization
- T50 40L (upgradeable to 50L with optional Orchard Kit)
- Coaxial Twin Rotor = Massive Increase in Payload
- Dual Atomization for Even Spraying
- Enhanced Spreading Efficiency for Superior Performance
- Omnidirectional Obstacle Sensing
- Mapping, Spraying and Spreading ALL in One
- Fully Enhance Remote Control for smoother and faster mapping
- Robustly Tested for Ultimate Reliability
- Ultra Fast Charging
- DJI Agras Intelligent Cloud

Spray System:
- 10.5-gallon liquid tank designed to empty in under 3 minutes
- Estimated 36-foot swath with pattern consistency across the entire swath
- Up to four rotary style nozzles spray through centrifugal force rather than pressure, making
adjusting droplet size as easy as clicking a button
- Magnetic drive impeller pump with up to 6.34 gal/min (4 nozzles) and 4.23 gal/min (2
nozzles)
- Live level meter, in addition to on-board scales, provide readings of the remaining volume of
liquid in tank signaling time remaining in field

Spreader System:
- 19.8-gallon spreader tank designed to hold 110 lbs of granular material
- Get higher spreading efficiency with the spiral channel spinner disk
- A jam-free, high-torque spreading motor

Efficiency & Operations:
- Improved terrain following ability with up to 50° in spraying/spreading missions
- 2 sets of binocular vision and 2 omnidirctional radars helping to achieve maximum efficiency
-Terrain following and obstacle bypassing
- 12 mega-pixel camera with adjustable angles for a smooth and crisp view
- 4 aircraft image transmission antennas
- Complete mapping capability

Essentials

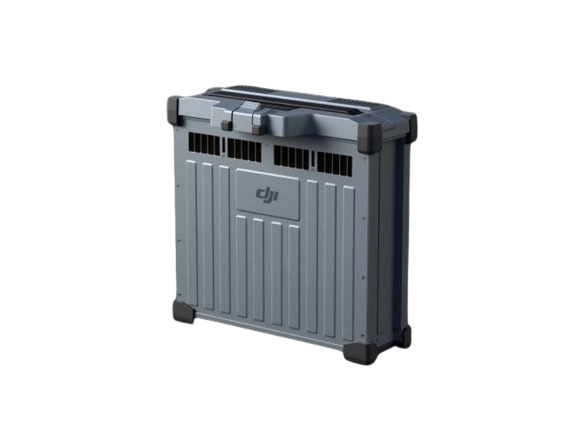

DJI DB1560 Intelligent Flight Battery Agras (for T40/T50)

$2,699.00

DJI Agras T30/T40 Intelligent Battery Station - HSE-UAV

DJI Agras T30/T40/T20P Intelligent Battery Station (DJI C8000)

$1,499.00

DJI Agras T40 Spreading System 3.0 - HSE-UAV

DJI Agras T50 Seed Spreading System

$1,199.00

Note: To build your own kit, start by selecting products listed above under "Essentials."

Additional accessories can be added based on your specific needs. Choose the appropriate components from the "Accessories" section listed below.

Shipping & Return Policy

We take every precaution to ensure your order arrives safely, but in rare cases, damage may occur during shipping. The return process depends on the shipping method, and following the correct steps is essential to qualify for a replacement. From documenting damage to handling claims, our guide covers everything you need to know to protect your purchase.

For details on returns, freight shipments, and battery policies, be sure to review our full policy.

Warranty

We stand by the quality of our products and work closely with manufacturers to ensure you receive the best possible support. While some items may come with a manufacturer warranty, terms vary by product. If you receive a defective item, our team will guide you through the warranty process and coordinate with the manufacturer for repairs or replacements. Please note that Raptor does not issue refunds for damaged or defective items.

For full details on warranty coverage and the return process please see our warranty policy.

Quantity:

12-month limited warranty

Drone Protection Plans

Hey there! Quick question, are you still just relying on basic drone insurance? That’s a bit like bringing an umbrella to a hurricane! Protect your drone (and your sanity) with Raptor’s Drone Protection Plan. Seriously, it’s the backup you didn’t know you needed.

FAA

Our consulting services help you get the FAA spraying drone approvals you’ll need… and we do it fast!

See Products

DJI Agras T50 (Build Your Own Kit)

$19,449.00

Accessories

DJI Agras T50 4-Nozzle Upgrade Package

$699.00

DJI Agras Spray Drone Training Class (2-Days, Orlando, FL.) - HSE-UAV

DJI Agras Spray Drone Knowledge Class (2-Days, Orlando, FL.)

$999.00

Product Features

Overview

10.5 Gal /13.2 Gal (40L/50L)

Capacity

52.6 Acres per Hour

Coverage

6.3 gal/min (24 LPM )

Max Flow Rate

Specifications

Specs

Aircraft

Weight
39.9 kg (excl. battery)
52 kg (incl. battery)

Max Takeoff Weight^[1]
Max takeoff weight for spraying: 92 kg (at sea level)
Max takeoff weight for spreading: 103 kg (at sea level)

Max Diagonal Wheelbase
2200 mm

Dimensions
2800×3085×820 mm (arms and propellers unfolded)
1590×1900×820 mm (arms unfolded and propellers folded)
1115×750×900 mm (arms and propellers folded)

Hovering Accuracy Range (with strong GNSS signal)
RTK enabled:
Horizontal: ±10 cm, Vertical: ±10 cm
RTK disabled:
Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)

RTK/GNSSOperating Frequency
RTK:
GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
GNSS:
GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1

Max Configurable Flight Radius
2000 m

Max Wind Resistance
6 m/s

Propulsion System - Motors

Stator Size
100×33 mm

KV
48 rpm/V

Power
4000 W/rotor

Propulsion System - Propellers

Material
Nylon carbon fiber filament

Dimension
54 in (1371.6 mm)

Propeller Rotation Diameter
1375 mm

Quantity
8

Dual Atomizing Spraying System - Spray Tank

Material
Plastic (HDPE)

Volume
40 L

Operating Payload ^[1]
40 kg^[1]

Quantity
1

Dual Atomizing Spraying System - Sprinklers

Model
LX8060SZ

Quantity
2

Nozzle Distance
1570 mm（Rear Nozzles）

Droplet Size
50-500 μm

Effective Spray Width ^[2]
4-11 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System - Delivery Pumps

Type
Impreller pump (magnetic drive)

Quantity
2

Single Pump Flow Rate
0-12 L/min

Max Flow Rate
16 L/min (2 sprinklers); 24 L/min (4 sprinklers)

T50 Spreading System

Compatible Material Diameter
0.5-5 mm dry granules

Spread Tank Volume
75 L

Spread Tank Internal Load ^[10]
50 kg

Spread Width
8 m

Phased Array Radar System

Model
RD241608RF (forward phased array radar); RD241608RB (rear phased array radar)

Terrain Follow
Max slope in mapping-free operation: 50°
Altitude detection range: 1-50 m
Stabilization working range: 1.5-30 m

Obstacle Avoidance ^[4]
Obstacle sensing range (multidirectional): 1-50 m
FOV:
Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
Rear phased array radar: vertical 360°, horizontal ±45°
Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
Sensing direction: 360° multidirectional sensing

Binocular Vision System

Measurement range
0.5-29 m

Effective Sensing Speed
≤10 m/s

FOV
Horizontal: 90°, Vertical: 106°

Operating Environment
Adequate light and discernible surroundings

Remote Controller

Model
RM700B

Operating Frequency ^[5]
2.4000-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance
7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (unobstructed, free of interference, and at an altitude of 2.5 m)

Wi-Fi Protocol
Wi-Fi 6

Wi-Fi Operating Frequency ^[5]
2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz

Bluetooth Protocol
Bluetooth 5.1

Bluetooth Operating Frequency
2.4000-2.4835 GHz

GNSS
GPS+Galileo+BeiDou

Screen
7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

Operating Temperature
-20° to 50° C (-4° to 122° F)

Storage Temperature Range
Less than one month: -30° to 45° C (-22° to 113° F)
One to three months: -30° to 35° C (-22° to 95° F)
Six months to one year: -30° to 30° C (-22° to 86° F)

Charging Temperature
5° to 40° C (41° to 104° F)

Internal Battery Runtime
3 hours 18 minutes

External Battery Runtime
2 hours 42 minutes

Charging Type
It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.

Charging Time
2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)
