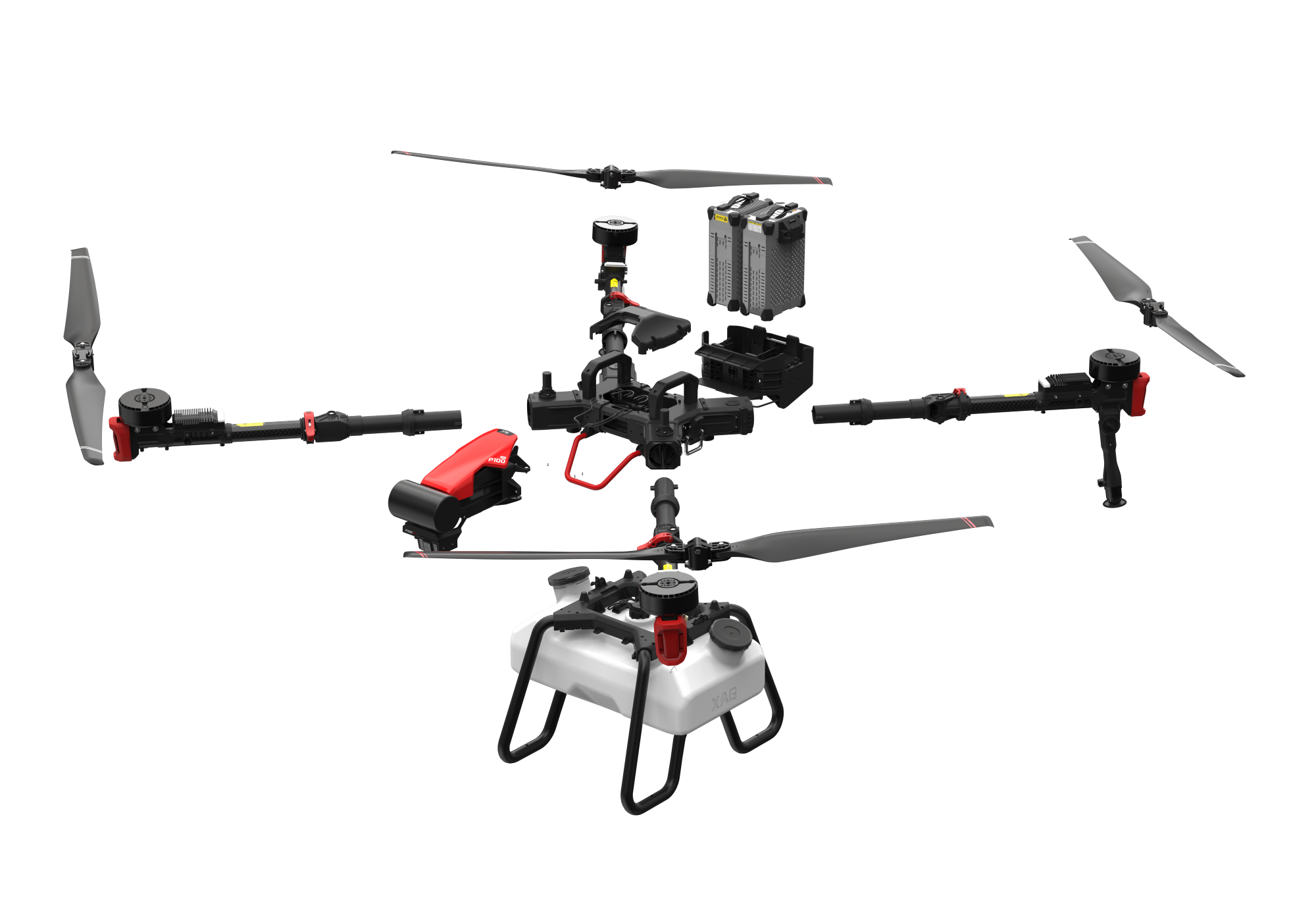

XAG P100 PRO (Spray All Day Kit) Now Includes Upgraded 60L/18.5 Gal Tank!!

Flying platform

Basic parameters

Dimensions

• 115 x 112.9 x 12.7 inch (2927 × 2868 × 323 mm) (blades extended)
• 35 x 43.1 x 13.6 inch (893 × 1095 × 345 mm) (blade folded, arm folded)

Symmetrical motor wheelbase

• 82.4 inch (2094mm)

Degree of protection

• IPX6K

Flight platform mass (including battery)

• 101 lbs (46 kg)

Arm tube material

• Glass and carbon fiber composites

Rated load

• 110 lbs (50 kg)

Flight parameters

Sustained high-accuracy navigation time in case of RTK data delay

• Limit RTK data delay within 600 seconds

Maximum flying speed

• 13.8 m/s

Hovering accuracy (good GNSS signal)

• RTK Enabled: Horizontal ±10cm, Vertical ±10cm
• Without RTK enabled: horizontal ±0.6m, vertical ±0.3m

Maximum take-off altitude

• 2000 meters (higher than 6,561 ft (2000 m) will affect the flight efficiency)

Recommended working environment temperature

• 0 ~ 40 degrees Celsius (0 – 104 °F)

Power system

Motor

Model

• A50

Rated power (single motor)

• 4100 watts

Maximum pulling force (single motor)

• 115 lbs (52 kg)

ESC

model

• VC13230

Maximum output current

• 230 Ann

Continuous output current

• 110 Ann

Collapsible propeller

Model

• 5515 propeller

Diameter × Pitch

• 55 x 15 inches (1397 x 381 mm)

XAG Revospray 3

Spray system size

• 29 x 28.9 x 19.6 inch (737 x 734 x 497 mm)

Tank rated capacity

• 13 gal (50 liters)

Tank load

• 110 lbs (50 kg)

Centrifugal atomizing nozzle

Quantity

• 2

Disc speed

• 1000 ~ 16000 rpm

Atomized particle size

• 60 ~ 400 microns (affected by spray flow, environment, etc.)

Spray pattern

• 5 ~ 10 meters (depending on flight speed, flight altitude, usage per mu, environment, etc.)

High frequency pulse peristaltic pump

Quantity

• 2

Maximum System Workflow

• 5.8 gal/min (22 l/min)

Voltage

• 50 volts

Single pump working flow

• 0.13 – 2.9 gal/min (0.5 ~ 11 L/min)

REVOCAST 3

Core Broadcast System Dimensions

• 41 x 28.7 x 25.6 inch (1059 x 728 x 651mm)

Smart bin

Rated capacity of material box

• 21 gal (80 liters)

Rated load of material box

• 110 lbs (50 kg)

Spiral variable feeder

Shipping container quantity

• 2

Maximum cutting quantity

• 330 lbs/min (150 kg/min) (measured in the laboratory using urea, the data is affected by factors such as particle size, shape, density, dry state)

Storage temperature

• 0 ~ 40 degrees Celsius (0 – 104 °F)

Maximum speed

• 410 rpm

Operating temperature

• 0 ~ 40 degrees Celsius (0 – 104 °F)

Spreading particle range

• Particle diameter 0.03 – 0.2 inch (1 ~ 6 mm)

Centrifugal sowing disk

Number of broadcasts

• 2

Spread

• 3 ~ 7 meters (depending on flight height, seed weight, shape, amount per mu, environment, etc.)

Maximum speed

• 800 rpm

Image sensor

• 12 million pixels

Lens

• Focal length 0.11 inch (2.7 mm)

Shutter mode

• mechanical shutter

Image Format

• JPEG

Power

• 10 watts

Recommended working temperature

• 10 ~ 45 degrees Celsius (50 – 113 °F)

Perception and obstacle avoidance system

• 4D Imaging Radar

Model

• RD24912

Operating Voltage

• 24~60 volts

Power

• 12 watts

Working frequency

• 24 GHz

Perception style

• 4D millimeter wave imaging, multiple transmissions and multiple receptions

Perceptual parameters

• Obstacle position, distance, direction of movement, relative speed

Range

• 1.5 ~ 80 meters

Field of View (FOV)

• Horizontal: ±40°; Vertical: +90° ~ -45°

Safe obstacle avoidance relative to ground height

• ≥1.5 meters

Safe obstacle avoidance distance

• 2.5 meters

Safe obstacle avoidance relative speed

• ≤13.8 m/s

Ground-following radar

Model

• TR24S100

Operating Voltage

• 12 volts

Power

• 1.5 watts

Perception style

• millimeter wave

Working frequency

• 24 GHz

Height measurement range

• 0.5 ~ 100 meters (relative height from crop surface)

Fixed height range

• 1 ~ 30 meters (relative height from crop surface)

Maximum slope

• 45° (@flight speed ≤ 2 meters/second)

PSL pilot’s perspective image

Video resolution

• 1920 x 1080

Frame rate

• 30 frames per second

Image sensor

• 1/2.9-inch CMOS-RGB image sensor

Supply voltage

• 5 volts (looking down PSL camera)
• 48 volts (front-viewing PSL camera)

Video encoding format

• 264

Focal length

• 0.12 inch (3.2 mm)

Power Systems

• XAG B13970 smart super chargeable battery

Model

• M1PPA13970A

Battery Type

• Rd

Rated Capacity

• 20 Ah

Rated output

• 48.75 V/140 A

Maximum charging current

• 100 A

Charging ambient temperature

• 10 ~ 45 degrees Celsius (50 – 113 °F)

XAG CM13600 charger

Model

• M2CM1-3600A

Number of output plugs

• 1

Output Power

• 1300 Watts (100 - 120 VAC ~ 50/60 Hz)
• 3400 Watts (220 - 240 VAC ~ 50/60 Hz)

Working temperature

• -20 ~ 40 degrees Celsius (-4 – 104 °F)

Input voltage

• AC, 100 - 120 V ~ 50/60 Hz 15.0 A
• AC, 220 - 240 V ~ 50/60 Hz 16.0 A

Output voltage current

• DC, 56.6V/35A (maximum) (100 - 120V AC ~ 50/60 Hz)
• DC, 56.6 V/80 A (max) (220 - 240 V AC ~ 50/60 Hz)

XAG6000 mobile supercharging station

Model

• M2GC6000A

Dimensions

• 9 x 16.4 x 18.7 inch (532 x 417 x 475mm)

Number of cylinders

• single cylinder

Weight

• 75 lbs (34 kg)

Start mode

• electric start

Compression ratio

• 6:1

Fuel tank capacity

• 4 gal (15 liters)

Oil capacity

• 0.15 gal (0.6 liters)

Engine oil grade

• SL level and above 10W-40

Fuel grade

• 92 unleaded gasoline

Fuel consumption

• ≤ 395 g/kWh

No-load speed

• 2600 rpm

Noise

• ≤ 78 decibels (measured at a distance of 7 meters)

Rated charging power

• 4200 watts

Maximum output power

• 6300 watts

Service life

• 1000 hours

Total displacement

• 9.2 fl oz (275 ml)

Pollutant emission level

• Country II

Communication and Control System

XAG ARC3 Pro two-hand remote control

Model

• M3ARC3A

Compatible devices

• XAG P100 Pro 2023 agricultural drone
• XAG V50 Pro 2023 agricultural drone
• XAG P100 2023 agricultural drone
• XAG V50 2023 agricultural drone

Working frequency

• 2.4 GHz/5.8 GHz

Signal distance (no interference, no obstruction)

• 1000 m (1 km)

Battery capacity

• 4932 mAh

Maximum battery life

• 6 hours (depending on specific work situation)

Working temperature

• -20 ~ 55 degrees Celsius (-4 – 131 °F) (battery performance may decrease when the temperature is lower than -5 degrees Celsius)

XAG ACS3 one-handed remote control

Model

• M3ACS3

Compatible devices

• XAG P100 Pro 2023 agricultural drone
• XAG V50 Pro 2023 agricultural drone
• XAG P100 2023 agricultural drone
• XAG V50 2023 agricultural drone
• XAG P100 2022 agricultural drone
• XAG V50 2022 Agricultural Drone
• XAG P series 2021 agricultural drones
• XAG V40 2021 agricultural drone

working frequency

• 4 GHz

Signal distance (no interference, no obstruction)

• 800 meters

Operating power consumption

• <9 watts

Charging ambient temperature

• 0 ~ 45 degrees Celsius (32 – 113 °F)

Working temperature

• -20 ~ 55 degrees Celsius (-4 – 131 °F)

(Battery performance may be degraded when the temperature is below -5 degrees Celsius)

• The product manuals and promotional materials attached to some products and modules do not use the official name of the product, or there are certain differences in the name, but none of them will affect the actual function, performance and use effect of the product. Component names include: 4D imaging radar (obstacle avoidance radar, swing radar), ground imitation radar (ground imitation radar module, terrain module), PSL camera (FPV camera, FPV camera), down-looking PSL camera (down-looking FPV camera), Front-view PSL camera (front-view FPV camera), CM13600 charger (smart super charger), B13970 smart super-chargeable battery (smart battery). If you have any questions, please call the service hotline: 400 980 3131.

• The above products and the parameters and data involved are all test results under the standard laboratory. The use of the products will be affected by various factors such as the operating scene, operating environment, temperature, and human operation methods, so there may be deviations. Please Users should strictly follow the official product instructions and guidelines for use.
