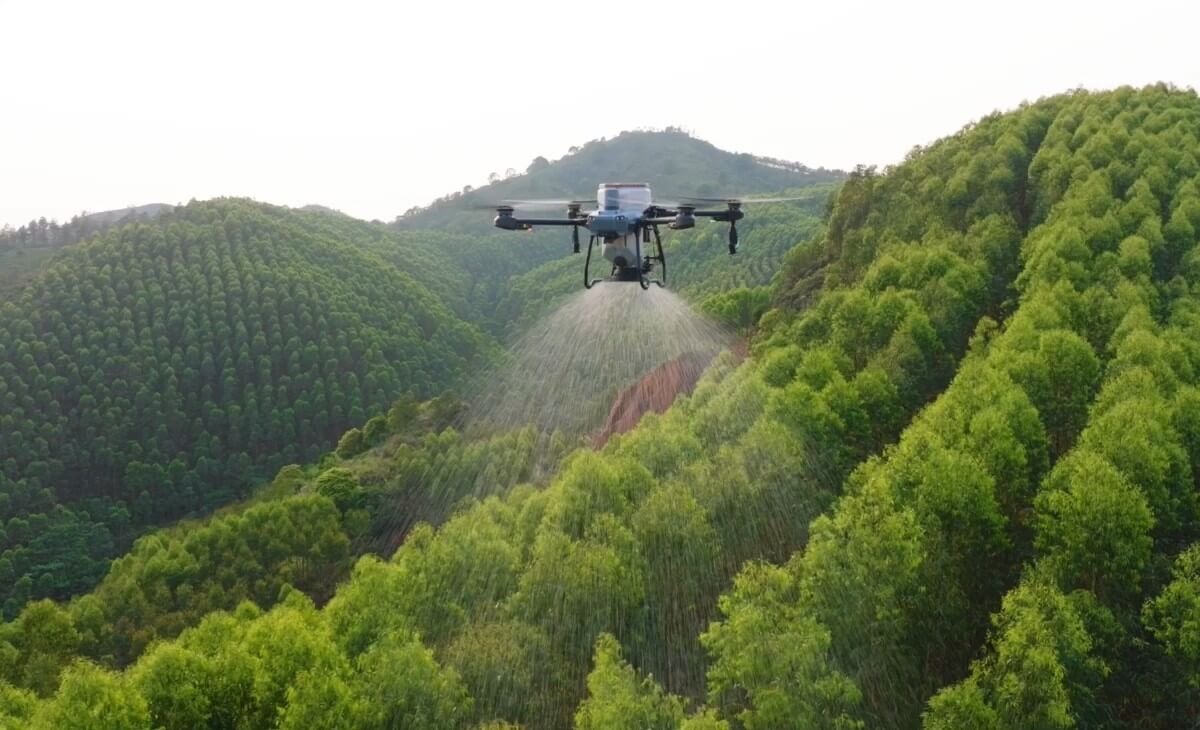

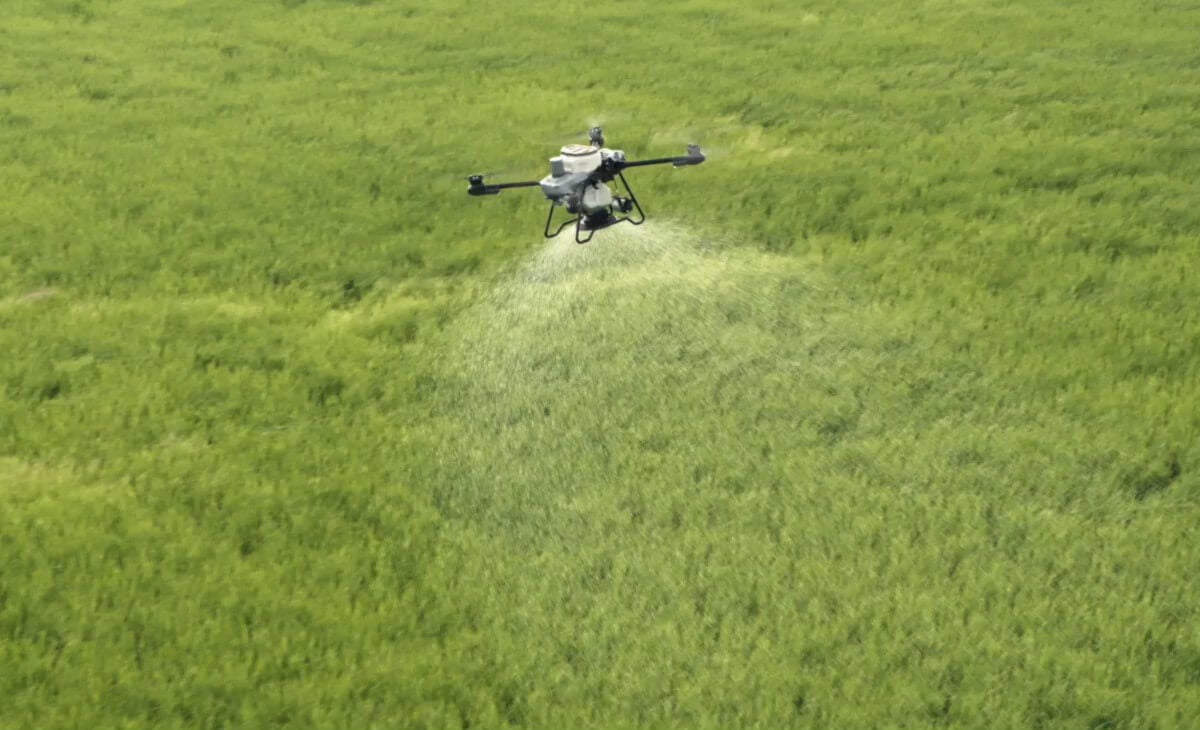

DJI Agras T25 (5.2 gal / 20L)

Aircraft

• Weight

• 25.4 kg (excl. battery)
  32 kg (incl. battery)

• Max Takeoff Weight^[1]

• Max takeoff weight for spraying: 52 kg (at sea level)
  Max takeoff weight for spreading: 58 kg (at sea level)

• Max Diagonal Wheelbase

• 1925 mm

• Dimensions

• 2585×2675×780 mm (arms and propellers unfolded)
  1475×1540×780 mm (arms unfolded and propellers folded)
  1050×690×820 mm (arms and propellers folded)

• Hovering Accuracy Range (with strong GNSS signal)

• RTK enabled:
  Horizontal: ±10 cm, Vertical: ±10 cm
  RTK disabled:
  Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)

• RTK/GNSSOperating Frequency

• RTK:
  GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
  GNSS:
  GPS L1, BeiDou B1I, GLONASS F1, Galieo E1, QZSS L1

• Max Configurable Flight Radius

• 2000 m

• Max Wind Resistance

• 6 m/s

Propulsion System - Motors

• Stator Size

• 100×28 mm

• KV

• 59 rpm/V

• Power

• 4600 W/rotor

Propulsion System - Propellers

• Material

• Nylon carbon fiber filament

• Dimension

• 50 inch

• Propeller Rotation Diameter

• 1270 mm

• Quantity

• 4

Dual Atomizing Spraying System - Spray Tank

• Material

• Plastic (HDPE)

• Volume

• 20 L

• Operating Payload ^[1]

• 20 kg[1]

• Quantity

• 1

Dual Atomizing Spraying System - Sprinklers

• Model

• LX8060SZ

• Quantity

• 2

• Nozzle Distance

• 1368 mm（Rear Nozzles）

• Droplet Size

• 50-500 μm

• Effective Spray Width^[2]

• 4-7 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System - Delivery Pumps

• Type

• Impeller pump (magnetic drive)

• Quantity

• 2

• Single Pump Flow Rate

• 0-12 L/min

• Max Flow Rate

• 16 L/min (2 sprinklers)
  24 L/min (4 sprinklers)

DJI AGRAS T25 Spreading System

• Compatible Material Diameter

• 0.5-5 mm

• Spread Tank Volume

• 35 L

• Spread Tank Internal Load ^[10]

• 25 kg^[1]

• Effective Spraying Width

• Varies according to material diameter, spinner disk rotational speed, hopper outlet size, and flight altitude. For optimal performance, it is recommended to adjust the corresponding variables to achieve a spreading range of 5-8 meters.

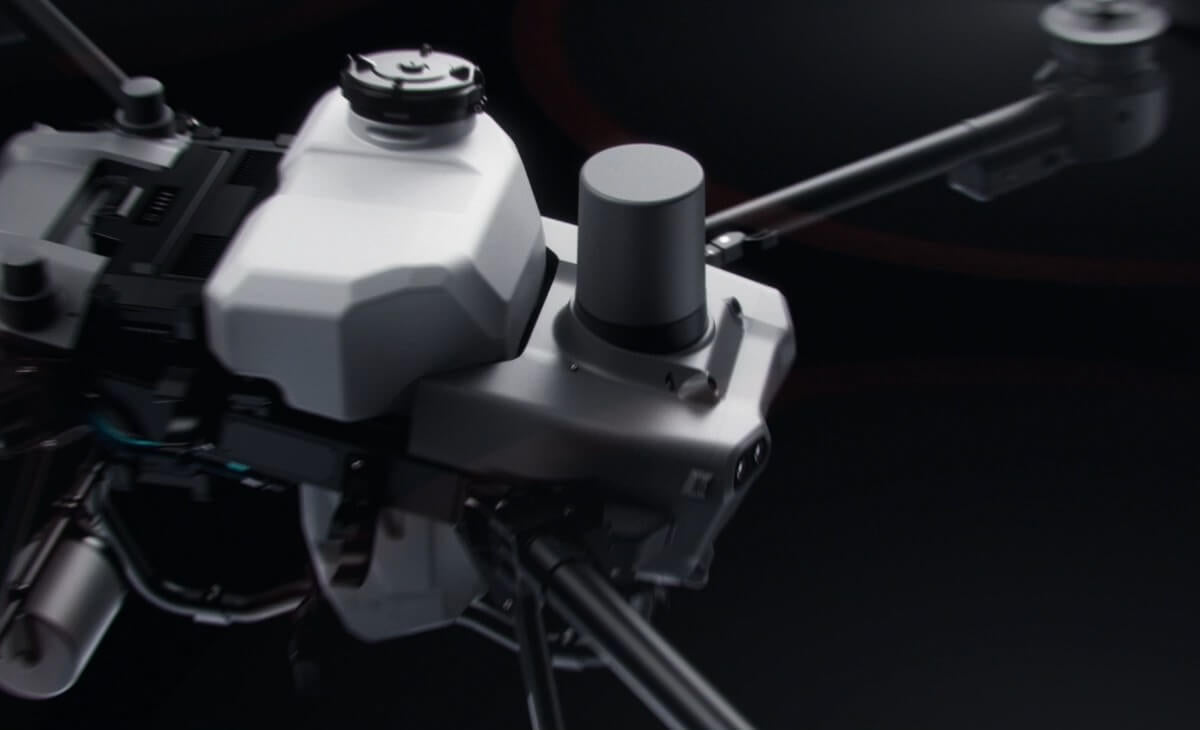

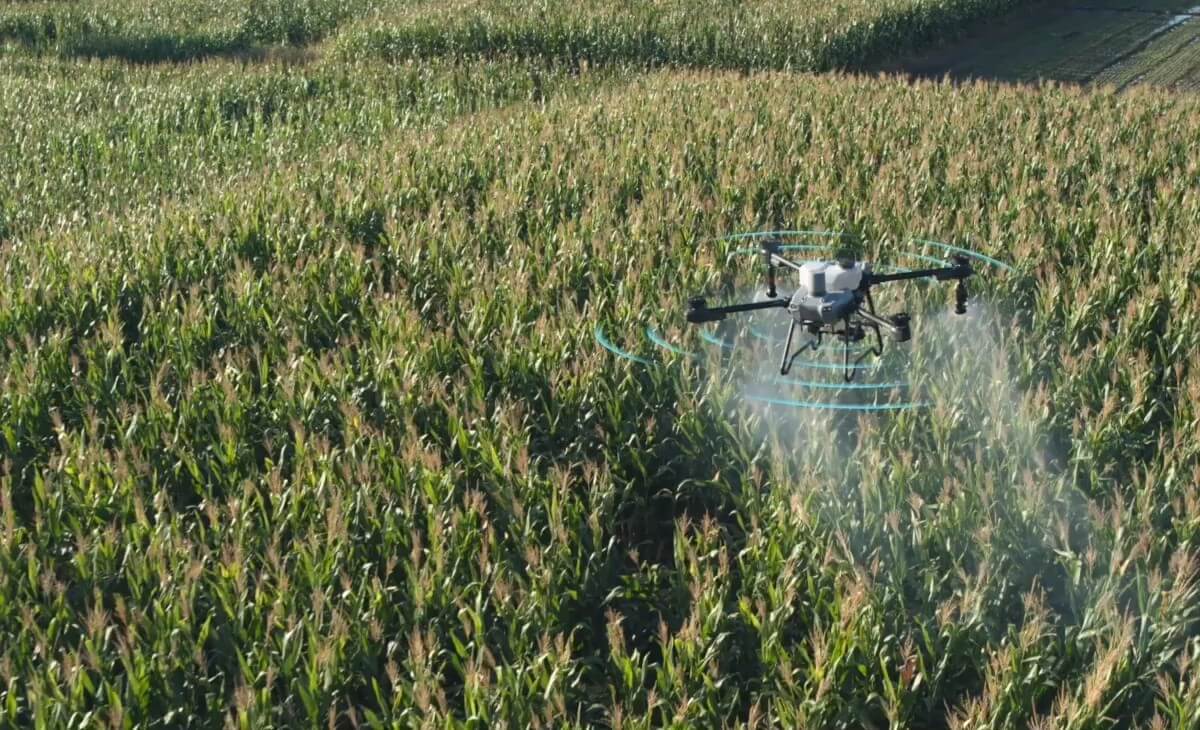

Phased Array Radar System

• Model

• RD241608RF (forward phased array radar)
  RD241608RB (rear phased array radar)

• Terrain Follow

• Max slope in mapping-free operation: 50°
  Altitude detection range: 1-50 m
  Stabilization working range: 1.5-30 m

• Obstacle Avoidance^[4]

• Obstacle sensing range (multidirectional): 1-50 m

  FOV:
  Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
  Rear phased array radar: vertical 360°, horizontal ±45°
  Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.

  Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)

  Sensing direction: 360° multidirectional sensing

Binocular Vision System

• Measurement range

• 0.5-29 m

• Effective Sensing Speed

• ≤10 m/s

• FOV

• Horizontal: 90°, Vertical: 106°

• Operating Environment

• Adequate light and discernible surroundings

Remote Controller

• Model

• RM700B

• Operating Frequency^[5]

• 2.4000-2.4835 GHz, 5.725-5.850 GHz

• Max Transmission Distance

• 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE)
  (unobstructed, free of interference, and at an altitude of 2.5 m)

• Wi-Fi Protocol

• Wi-Fi 6

• Wi-Fi Operating Frequency [5]

• 2.4000-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz


• Bluetooth Protocol

• Bluetooth 5.1

• Bluetooth Operating Frequency

•


• GNSS

• GPS+Galileo+BeiDou

• Screen

• 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

• Operating Temperature

• -20° to 50° C (-4° to 122° F)

• Storage Temperature Range

• Less than one month: -30° to 45° C (-22° to 113° F)
  One to three months: -30° to 35° C (-22° to 95° F)
  Six months to one year: -30° to 30° C (-22° to 86° F)

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Internal Battery Runtime

• 3 hours 18 minutes

• External Battery Runtime

• 2 hours 42 minutes

• Charging Type

• It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.

• Charging Time

• 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

DB800 Intelligent Flight Battery

• Model

• DB800 Intelligent Flight Battery
  (BAX702-15500mAh-52.22V)

• Weight

• Approx. 6.6 kg

• Capacity

• 15500 mAh

• Nominal Voltage

• 52.22 V

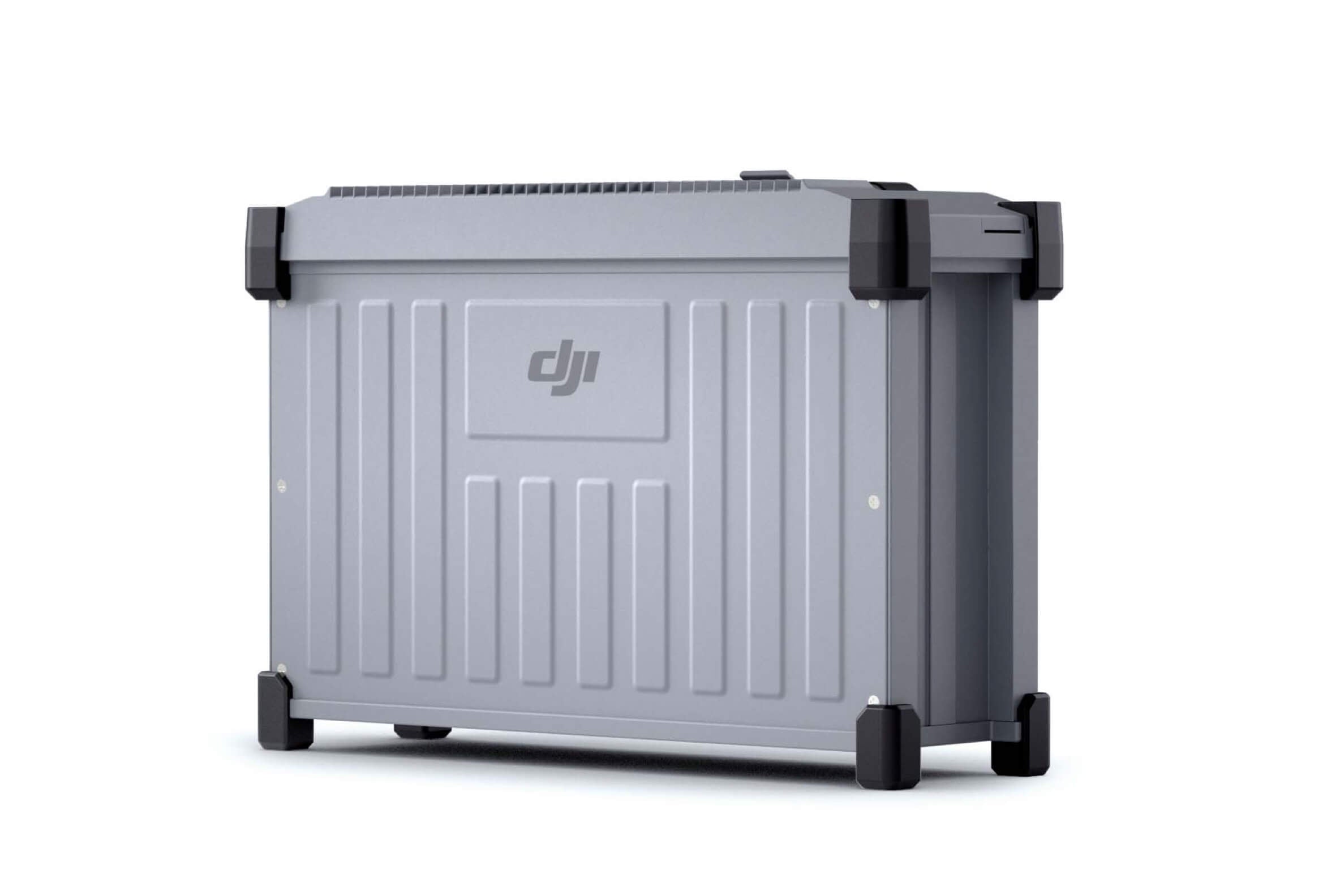

D6000i Multifunctional Inverter Generator

• Output Channel

• 1. DC charging output 42-59.92V/4500W
  2.AC output 230V/1500W or 120V/750W^[8]

• Battery Charging Time^[11]

• To fully charge one battery (DB800 battery) takes 9-12 mins

• Fuel Tank Capacity

• 20 L

• Starting Method

• Starting the Generator via the One-Button Start Switch

• Max Power of Engine

• 6000 W

• Fuel Type

• Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)

• Reference Fuel Consumption ^[9]

• 600 ml/kWh

• Engine Oil Model

• SJ10W-40

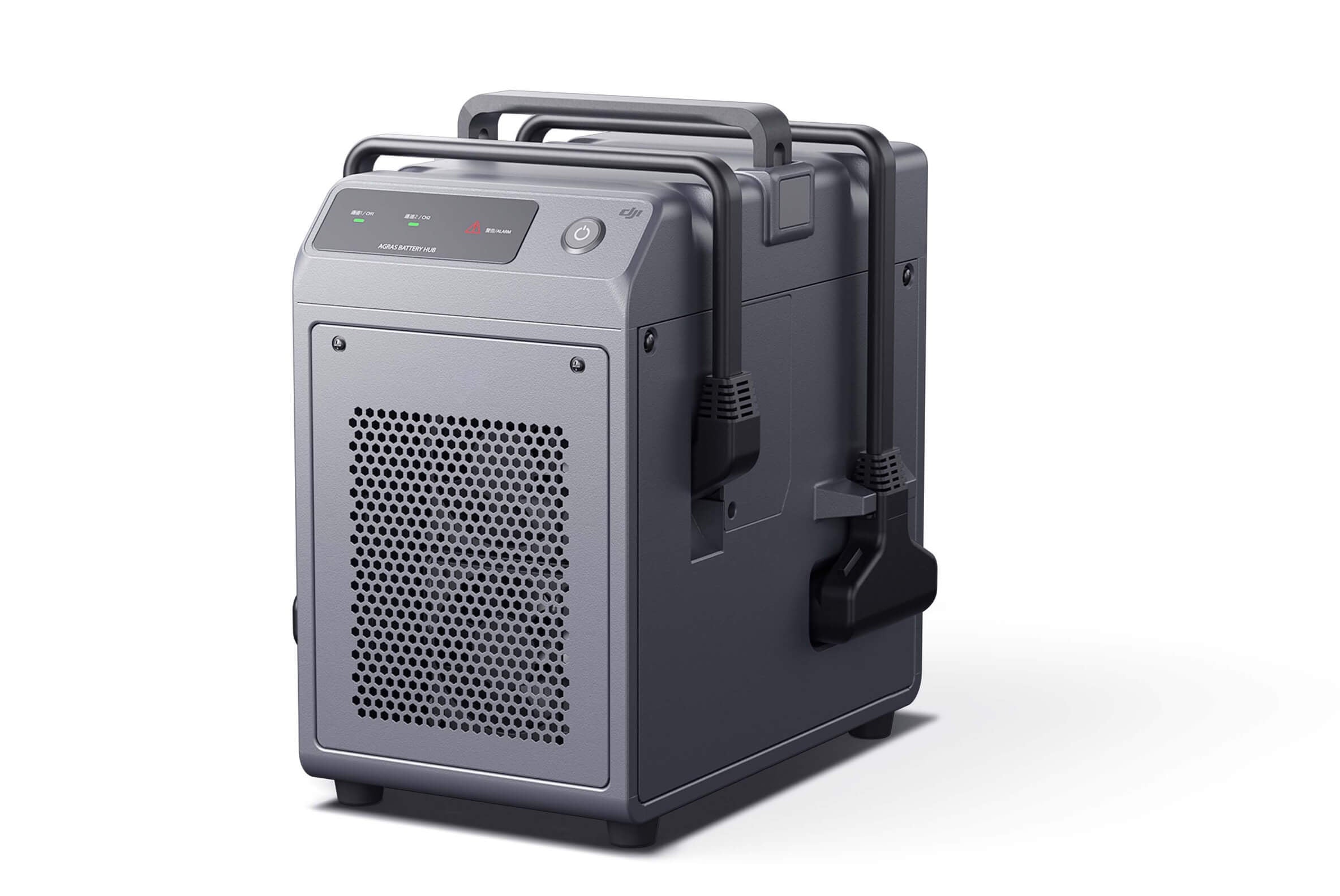

C8000 Intelligent Charger

• Model Number

• CHX101-7000

• Dimensions

• 300 × 280 × 230 mm

• Weight

• Approx. 11.5 kg

• Input/Output

• Input Voltage: 100-240 VAC
  Output Voltage: 59.92V
  Output Current: 100A max

• Charging Time^[11]

• Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery)

• Protection Functions

• Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection

• Charging Safety

• AC wire protection, power wire protection, and charge connector protection

Relay

• Model

• RL01-65

• Dimensions

• 120×110×100 mm

• Weight

• ≤575 g

• Input Voltage ^[6]

• 9 V3 A / 12 V2.5 A / 15 V2 A

• Power Consumption

• 9 W (SRRC), 12 W (FCC)

• Capacity

• 6500 mAh

• Operating Time

• 4 hours

• Operating Frequency [5]

• 2.4000-2.4835 GHz
  5.725-5.850 GHz

• Max Transmission Distance

• 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
  (unobstructed, free of interference, and at a flight altitude of 2.5 m)

• Charging Time

• 2 hours and 20 minutes (when using a standard DJI charger)

• IP Rating ^[6]

• IP55

Definition

•


• [1] Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced by 5 kg for every 1,000m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
  [2] The spray width of the spraying system depends on the operating scenario and demand for coverage evenness.
  [3] The spread width of the spreading system depends on the operating scenario and demand for coverage evenness.
  [4] The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing mainly assists in Terrain Follow and Altitude Hold. The sensing in other directions is used for Obstacle Avoidance.
  [5] 5.8 GHz frequency is unavailable in some contries. Check local regulations for more information.
  [6] Use chargers or external power supplies that meet the specifications. Otherwise, the device may not work normally.
  [7] The protection rating may be reduced due to improper use and damage caused by external forces or environmental factors.
  [8] The actual power and voltage may vary according to local regulations.
  [9] Measured using RON 92 gasoline at near sea level with an ambient temperature of 25°C, while charging at 9 kW.
  [10] The DJI Agras app will intelligently recommend the payload weight limit for the spread tank according to the current status and surroundings of the aircraft. DO NOT exceed the recommended payload weight limit when adding material to the spread tank. Otherwise, the flight safety may be affected.
  [11]Factors impacting charging time: Altitude of the charging station; Charging cable meets requirements for fast charging; Battery cell's temperature is in the range of 15° to 70° C (59° to 158° F)
