XAG P150 MAX (Drone Only)

Name: XAG P150 MAX (Drone Only)
Brand: XAG
Price: 19990.00 USD
Availability: InStock

(4.5) • 2 reviews

21 Gal (80L) Capacity

up to 93 acres per hour Coverage

8.5 gpm Max Flow Rate

44.7 mph (20 m/s) Max Speed

up to 32 ft Max Swath

XAG Super X5 Ultra Intelligent control system, Obstacle Avoidance, 4D imaging radar, Wide-angle HD FPV Safety

21 Gal (80L) Capacity

up to 93 acres per hour Coverage

8.5 gpm Max Flow Rate

44.7 mph (20 m/s) Max Speed

up to 32 ft Max Swath

XAG Super X5 Ultra Intelligent control system, Obstacle Avoidance, 4D imaging radar, Wide-angle HD FPV Safety

XAG P150 MAX (Drone Only)

09-007-00188

(4.5) • 2 reviews

Price

$19,990.00

Pay in One Payment

Description

Farming is always evolving. So does our tool. Introducing the XAG P150 Max, an agricultural drone built to push efficiency even further. Leading performance, top intelligence, and proven reliability.
Engineered to tackle the most challenging demand in the field.

Liquid error (snippets/product-info-custom line 3): Could not find asset snippets/what_included.liquid

What's Included:

x1 XAG P150 Max Agricultural Drone (with RevoSpray 5) (INTL)

Shipping & Return Policy

We take every precaution to ensure your order arrives safely, but in rare cases, damage may occur during shipping. The return process depends on the shipping method, and following the correct steps is essential to qualify for a replacement. From documenting damage to handling claims, our guide covers everything you need to know to protect your purchase.

For details on returns, freight shipments, and battery policies, be sure to review our full policy.

Warranty

We stand by the quality of our products and work closely with manufacturers to ensure you receive the best possible support. While some items may come with a manufacturer warranty, terms vary by product. If you receive a defective item, our team will guide you through the warranty process and coordinate with the manufacturer for repairs or replacements. Please note that Raptor does not issue refunds for damaged or defective items.

For full details on warranty coverage and the return process please see our warranty policy.

Quantity:

12-month limited warranty

FAA

Our consulting services help you get the FAA spraying drone approvals you’ll need… and we do it fast!

See Products

XAG P150 MAX (Drone Only)

$19,990.00

Accessories

Product Features

Overview

21 Gal (80L)

Capacity

up to 93 acres per hour

Coverage

8.5 gpm

Max Flow Rate

Specifications

Aerial Platform

Basic Parameters

Aircraft Weight

123 lb (56 kg) with XAG P150 Max RevoSpray 5 and batteries

132 lb (60 kg) with XAG P150 Max RevoCast 5 and batteries; spray rods excluded
Rated Takeoff Weight

276 lb (125 kg) rated takeoff weight for spraying

282 lb (128 kg) rated takeoff weight for spreading; spray rods excluded
Protection Rating

IPX6K

Flight Parameters

Hovering Precision (Good GNSS Signal)

RTK Enabled: ±3.9 in (±10 cm) horizontal, ±3.9 in (±10 cm) vertical

RTK Disabled: ±2.0 ft (±0.6 m) horizontal, ±1.0 ft (±0.3 m) vertical
Maximum Flight Speed

65.6 ft/s (20 m/s)
Recommended Operating Temperature

32 ~ 104 °F (0 ~ 40 °C)
Maximum Flight Height

98 ft (30 m)

Propulsion System

Motor

Maximum Tension (Single Motor)

123 lb (56 kg)
Rated Power (Single Motor)

4.85 kW (4850 W)

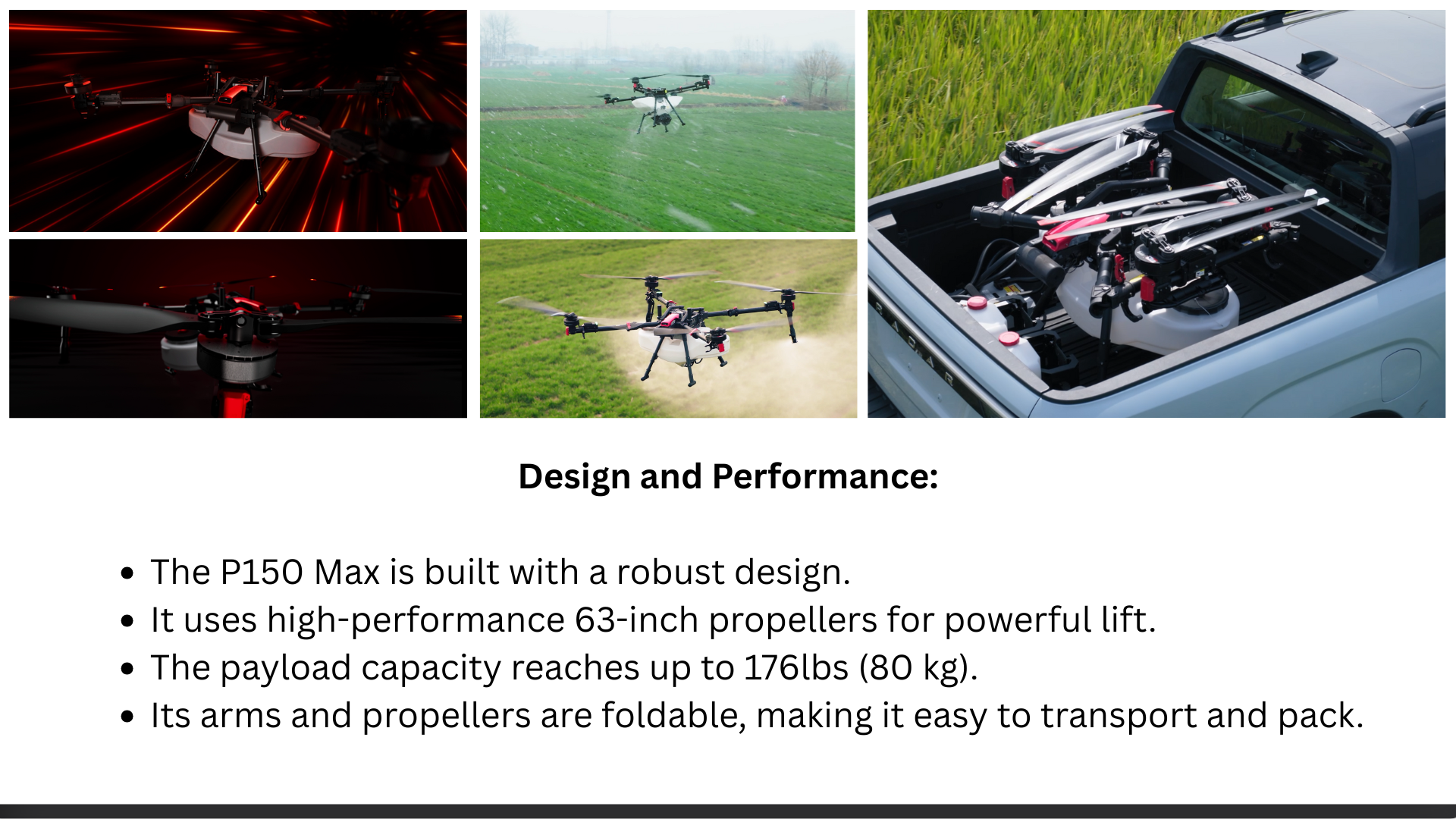

Foldable Propeller

Diameter × Pitch

63 in (1600 mm)

Sensing & Avoidance System

4D Imaging Radar

Sensing Range

5 ~ 328 ft (1.5 ~ 100 m)
Sensing Mode

Beamforming, 4D imaging
Relative Height of Obstacle Avoidance

≥ 4.9 ft (≥ 1.5 m)
Field of View (FOV)

Horizontal: ±40°

Vertical: ±15°
Distance of Obstacle Avoidance

8.2 ft (2.5 m)

(Distance between propeller tip and obstacle after the drone brakes and hovers stably)
Relative Speed of Obstacle Avoidance

≤ 45.3 ft/s (≤ 13.8 m/s)

Notes:

Obstacle detection range and avoidance performance may be affected by environmental factors such as lighting, weather conditions (e.g., rain or fog), object material, shape, and position. Product performance may also be influenced by temperature and operator technique. Different operating conditions may require different parameters, which could significantly affect efficiency. Due to continuous product updates, specifications may vary slightly by batch. This material is for reference only; please contact regional distributors for sales inquiries.

Comparison

XAG P150 MAX (Drone Only)

More Info

21 Gal (80L)

Capacity

up to 93 acres per hour

Coverage

8.5 gpm

Max Flow Rate

	XAG P150 MAX (Drone Only)

Frequently Asked Questions

How long does it take to charge the batteries?

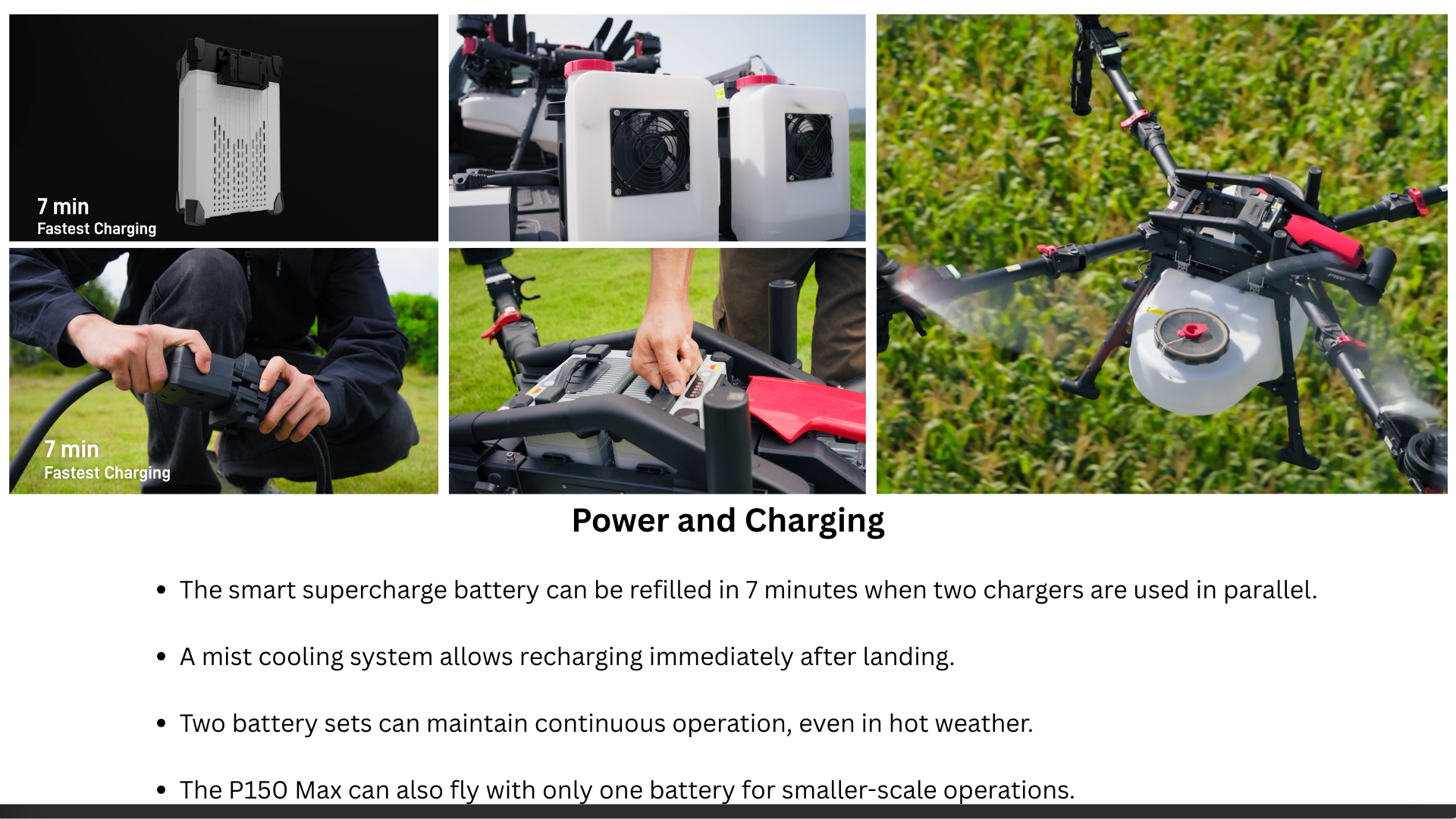

The smart supercharge battery can be refilled in 7 minutes when two chargers are used in parallel.

How do I order replacement propellers and batteries?

Right here on our website, at one of our dealers across the country or via our helpful staff on the phone.

Does it have cameras for navigation or safety?

Of course - plus The drone is powered by the XAG Super X5 Ultra Intelligent control system, enabling fully autonomous flight. A 4D imaging radar and a camera detect obstacles, keeping the drone clear from pedestrians, pivots, and power poles. A wide-angle HD FPV camera provides real-time view for safer navigation.. Built in additional safeguards are also in-place, but with all drones - it's your job to operate and plan your missions safely.

Is the P150 MAX easy to setup and fly right out of the box?

Extremely easy. XAG P150 MAX drones come paired and connected. Proper training is highly encouraged, but as far as easy-to-use, P150 MAX is a sure choice.
