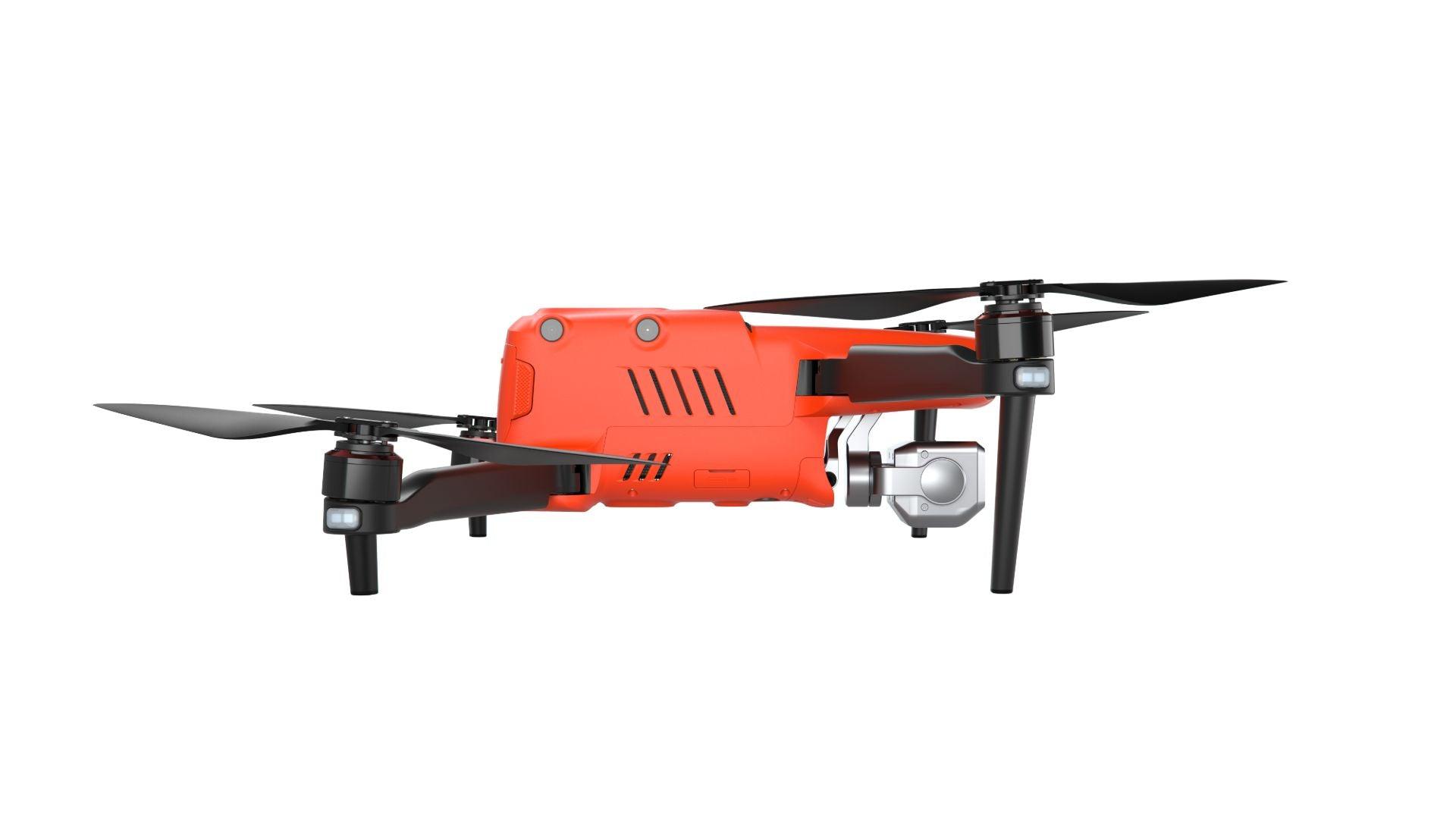

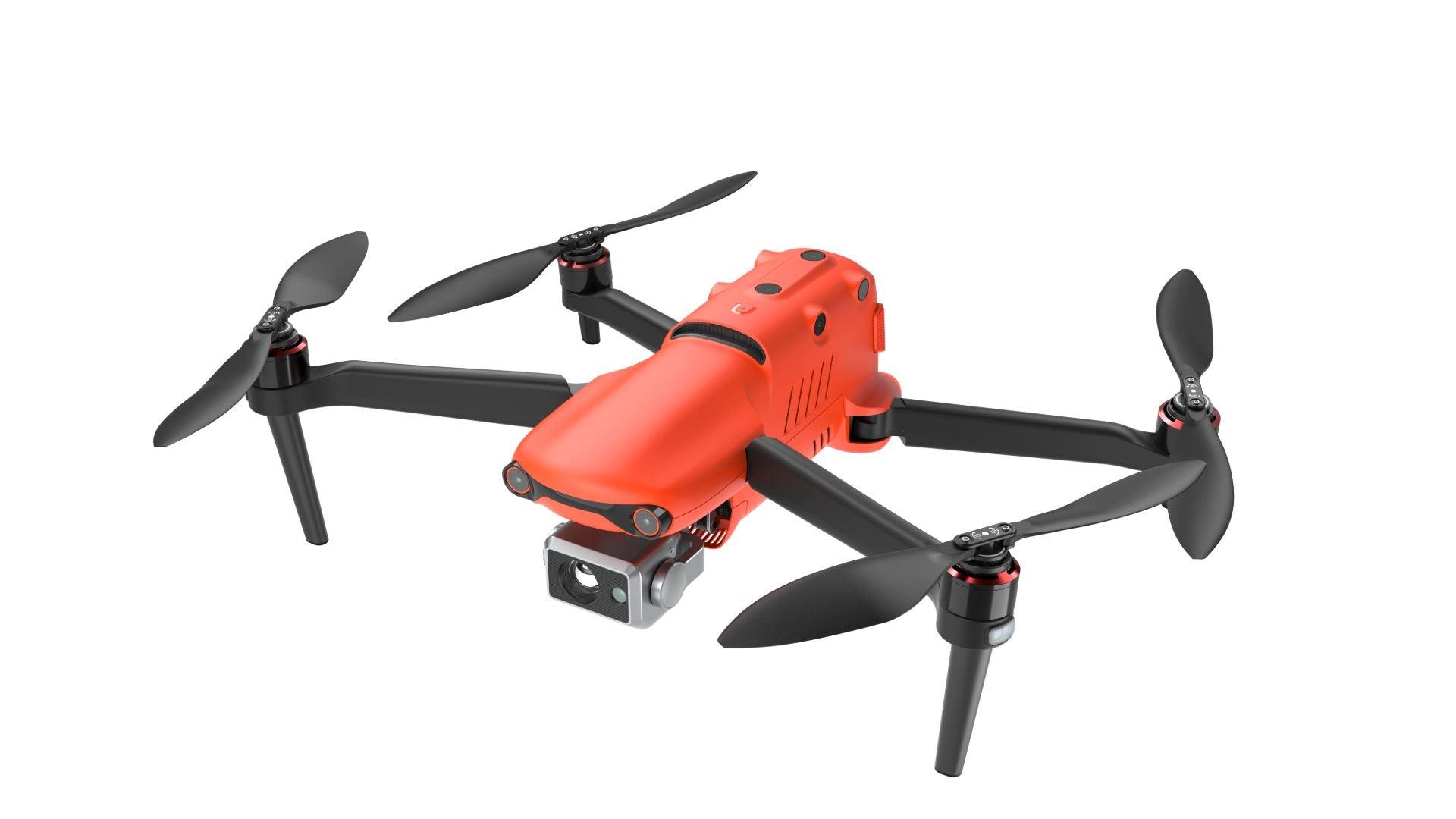

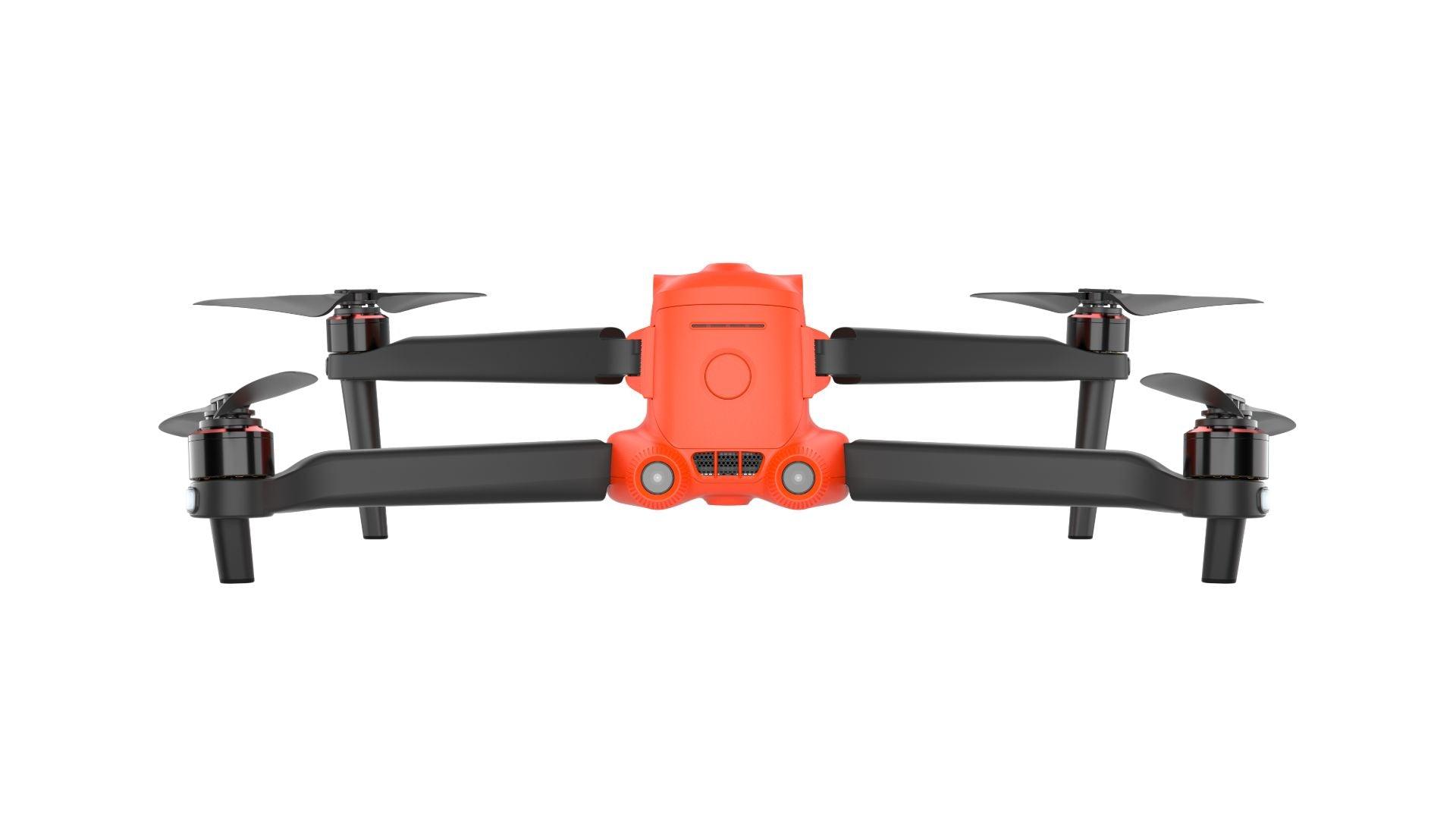

EVO II DUAL Thermal & 8K Drone
Specifications

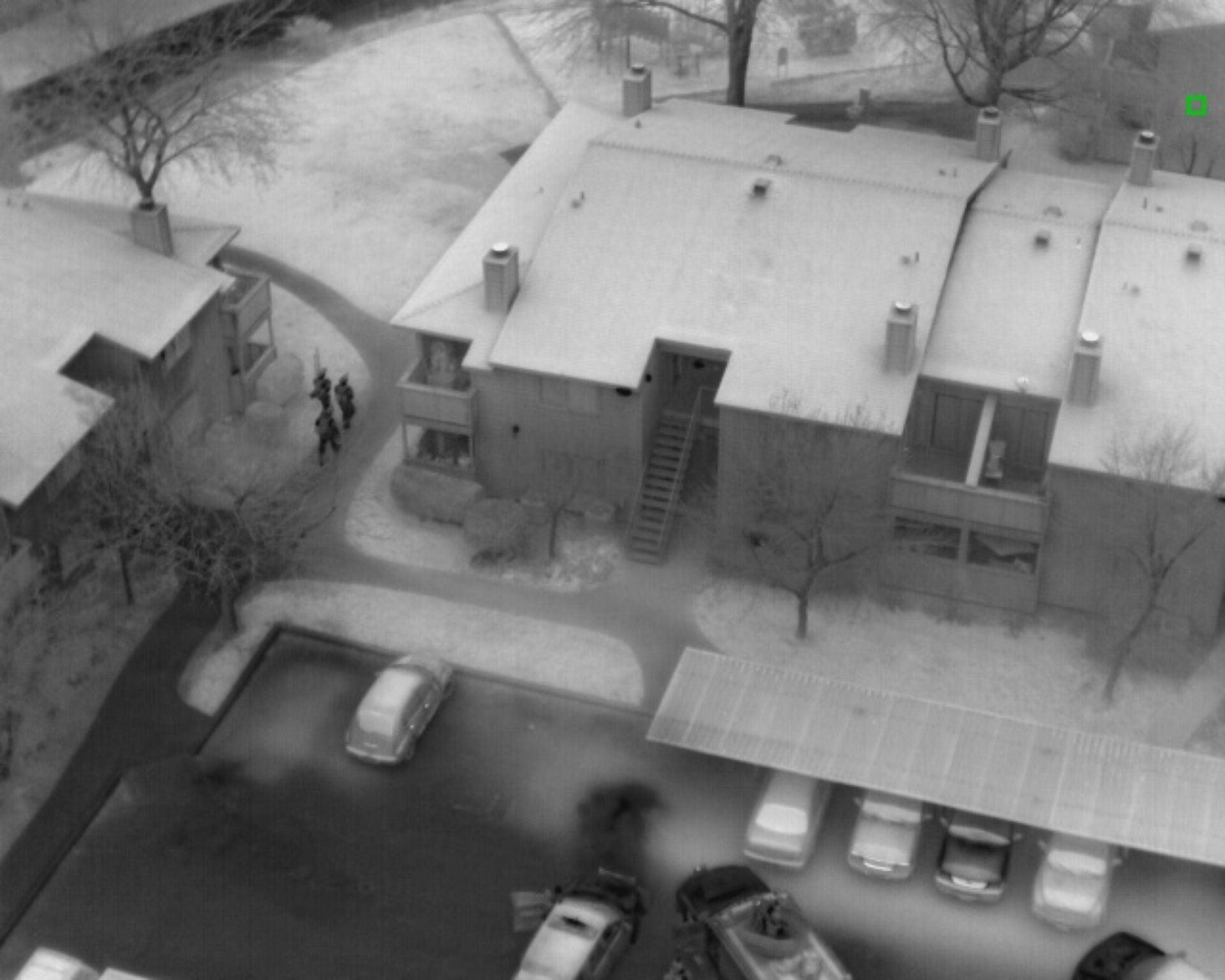

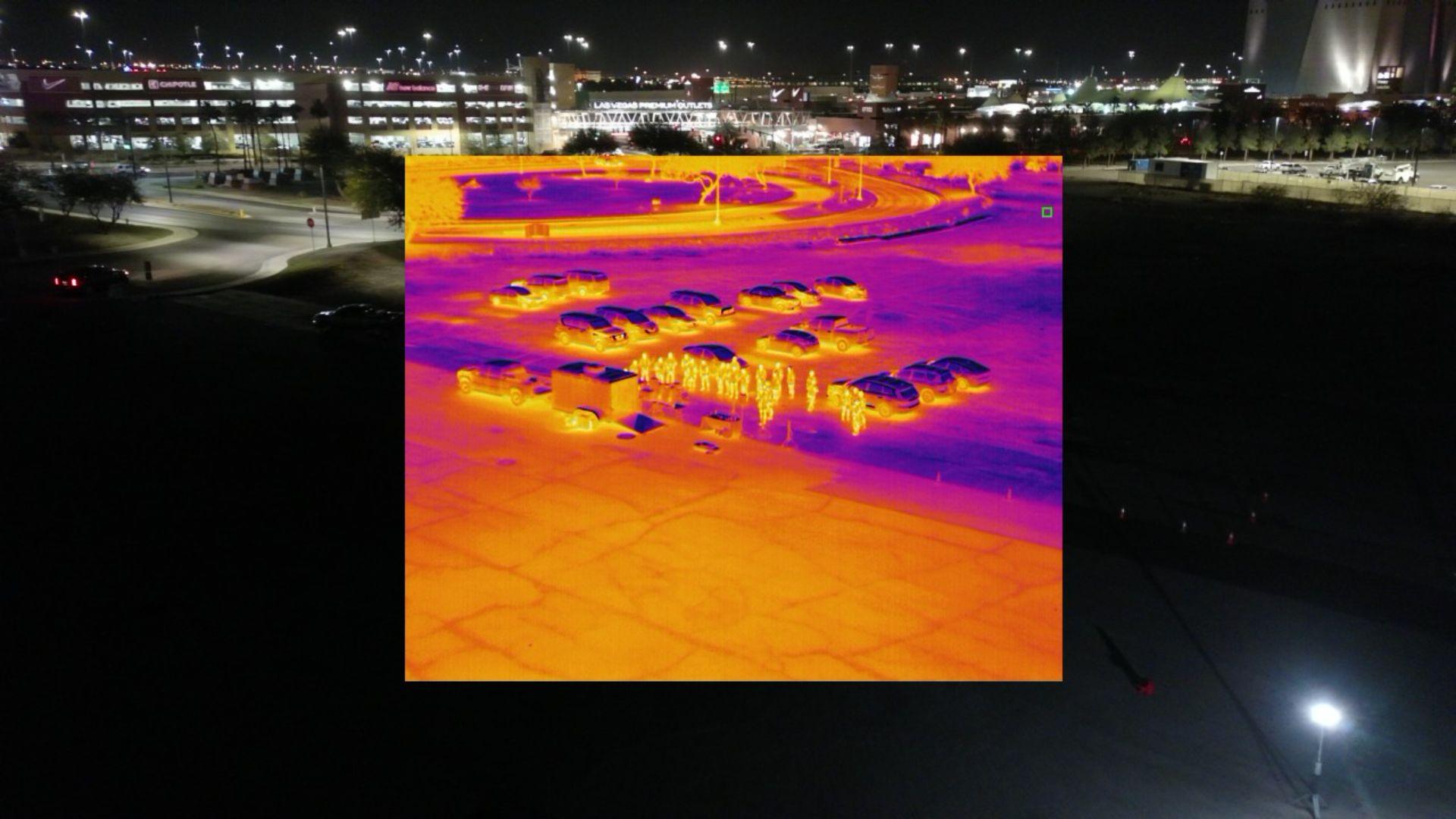

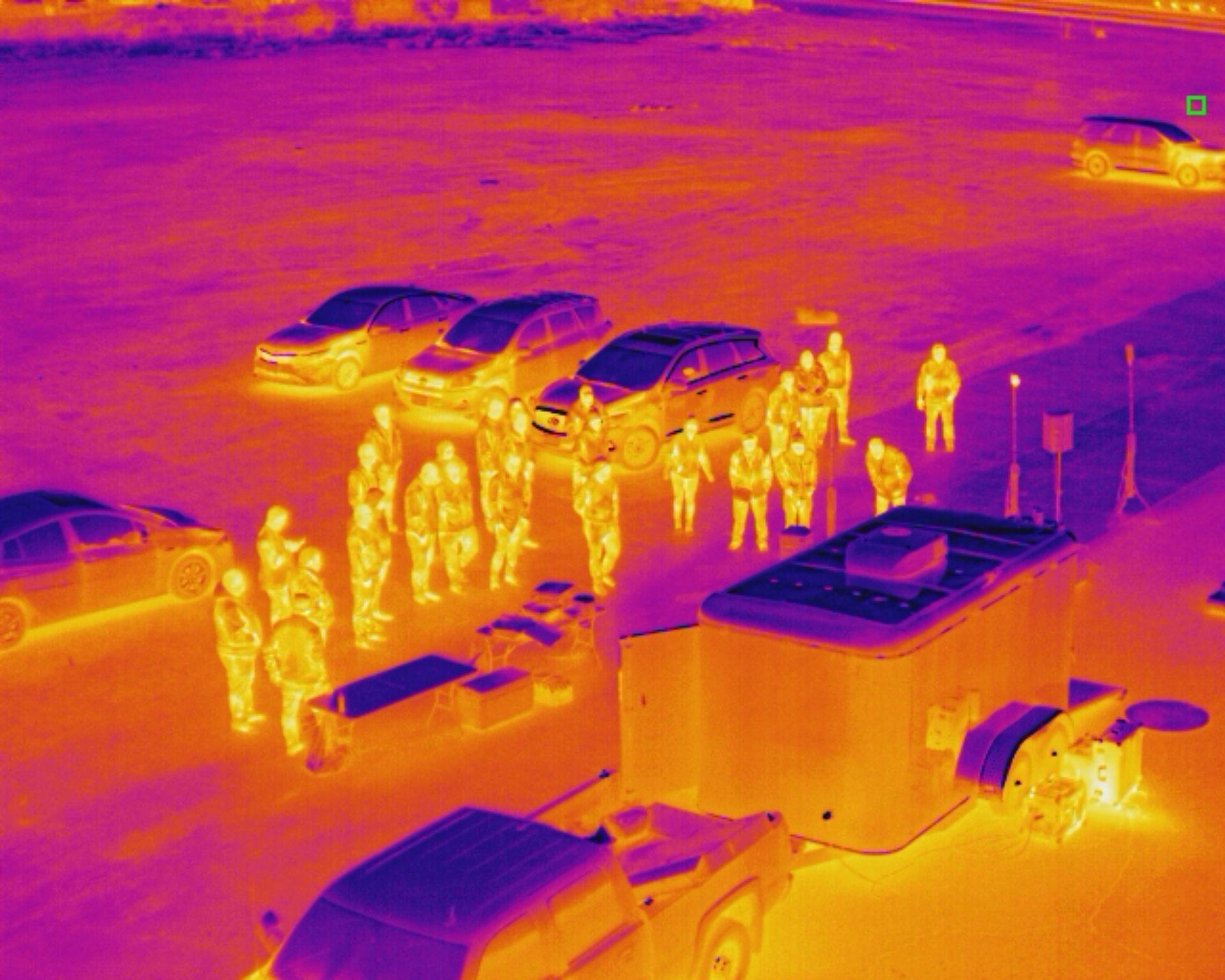

Thermal Camera
| Infrared camera sensor | Uncooled VOx Microbolometer |
| Sensor resolution | EVO II Dual (640) 640*512 EVO II Dual (320) 320*256 |
| Pixel pitch | 12 µm |
| Wavelength range | 7.5～13.5 µm |
| FOV | EVO II Dual (640) 32° EVO II Dual (320) 34° |
| Thermal Sensitivity/NEdT | <50 mK |
| Zoom | 1 ~ 8x |
| Still Photography Modes | Single shot, burst and timelapse |

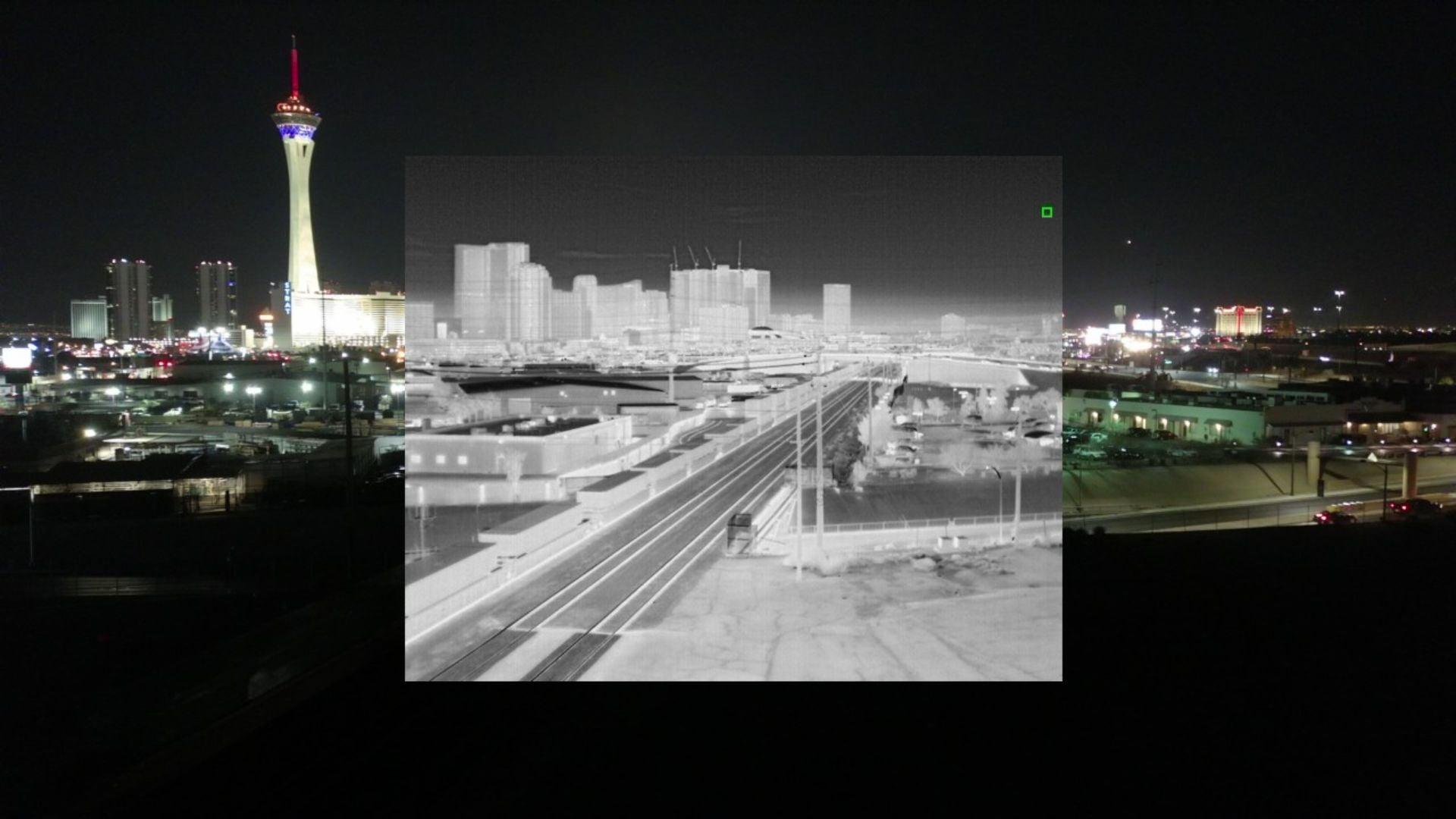

| Still Photography Resolution | IR: 640*512 PIP: 1920*1080, 1280*720 |
| Video Format | MOV/MP4 (H.264/H.265 supported) |
| Video Resolution | 640*512 30Hz (US) 640*512 9Hz (other regions) |
Camera
| Image Sensor | 1/2" CMOS |
| Pixels | 48MP |
| Perspective | 79° |
| Lens | EFL: 25.6 mm Aperture: f/2.8–f/11 Focus Distance: 0.5m to any distance (with autofocus mode) |
| ISO Range | Video: 100-6400 (auto) Photo: 100-3200 (auto) |
| Zoom | 1-8x (Max 4x lossless) |
| Still Photography Modes | Single Shot Burst: 3/5 shots Auto Exposure Bracketing (AEB) Time-lapse: 3/5 shots |
| Still Photography Resolution | 8000*6000 (4:3) 7680*4320 (16:9) 4000*3000 (4:3) 3840*2160 (4:3) |
| Video Format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Video Resolution | 8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Max Bitrate | 120Mbps |
Aircraft
| Takeoff Weight | 2.5 lbs (1150 g) |
| Max Takeoff Weight | 4.4 lbs (2000 g) |
| Diagonal Wheelbase | 15.6 inches (397 mm) |
| Aircraft Battery | 7100 mAh |
| Max Flight Time (standard) | EVO II Dual (640) 38min EVO II Dual (320) 40min |
| Max Hovering Time (standard) | EVO II Dual (640) 33min EVO II Dual (320) 35min |
| Max Level Flight Speed (Standard) | 45mph (20 m/s) (Ludicrous) |
| Max Ascent Speed | 18mph (8 m/s) (Ludicrous) |
| Max Descent Speed | 9 mph (4 m/s) (Ludicrous) |
| Max Service Ceiling Altitude | 4.3 miles (7000 m) MSL |
| Max Wind Resistance | Force 8 wind |
| Operating Environment Temp | 14-104°F (-10-40°C) |
| Working Frequency | 2.4~2.4835GHz |
| Transmission Power | 2.4~2.4835GHz FCC/ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm |
| Hover Precision | Vertical: ± 0.1m (with visual positioning in normal operation) ± 0.5m (with GPS in normal operation) Horizontal: ± 0.3m (with visual positioning in normal operation) ± 1.5m (with GPS in normal operation) |
Sensing System
| Sensing System Type | Omnidirectional Binocular Sensing System |
| Forward | Accurate Measuring Range: 0.5 - 20m Detection Range: 0.5 - 40m Effective Sensing Speed: < 15 m/s FOV: Horizontal: 60°, Vertical: 80° |
| Backward | Accurate Measuring Range: 0.5 - 16m Detection Range: 0.5 - 32m Effective Sensing Speed: < 12 m/s FOV: Horizontal: 60°, Vertical: 80° |
| Upward | Accurate Measuring Range: 0.5 - 12m Detection Range: 0.5 - 24m Effective Sensing Speed: < 6 m/s FOV: Horizontal: 65°, Vertical: 50° |
| Downward | Accurate Measuring Range: 0.5 - 11m Detection Range: 0.5 - 22m Effective Sensing Speed: < 6 m/s FOV: Horizontal: 100°, Vertical: 80° |
| Sides | Accurate Measuring Range: 0.5 - 12m Detection Range: 0.5 - 24m Effective Sensing Speed: < 10 m/s FOV: Horizontal: 65°, Vertical: 50° |
| Service Environment | Textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on) Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.) Downward: textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on) Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.) |
Gimbal
| Operation Range | Pitch: -135° to +45 Yaw: -100° to +100° |
| Operation Range | Pitch: -90° to +30° Yaw: -90° to +90° |
| Stability | More Stable with 3 Axies |
| Max Control Speed (Tilt) | 300°/s |
| Angular Vibration Range (°) | ±0.005° |
Remote Controller and Transmission
| Max Signal Transmission Distance | 5.5 miles (9km) FCC, 3.1 miles (5km) CE |
| Working Frequency | 2.4~2.4835GHz |
| Transmission Power | 2.4~2.4835GHz FCC/ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm |
| Real-Time Transmission Quality | 720p@30fps / 1080p@30fps |
| Max Bitrate of Real-time Transmission | 40Mbps |
| Remote Controller Battery | 5000mAh |
| Operating Hours | 3h |
| Charging Time | 2h Fast Charging |
| Display | 3.26-inch OLED screen 854 (W)*480 (H) pixels Preview video without the need for connecting to a mobile phone |
| 1.7A@3.7V |
Battery
| Battery (mAh) | 7100mAh |
| Voltage (V) | 11.55 |
| Transmission Power (2.4G) | 13.2 |
| Battery Type | LiPo 3S |
| Battery Energy | 82Wh |
| Weight (g) | 365 |
| Charging Temperature Range (°C) | 5~45℃ |
| Storage Temperature & Humidity | -10~30℃，65±20%RH |
| Recommended Storage Temperature | 22~28℃ |
| Max Charging Power Consumption (W) | 93W |
| Charging Time | 90min |
Charger
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
| Voltage | 13.2 ± 0.1 V |
| Rated Power | 66 W |
APP
| iOS | Autel Explorer |
| Android | Autel Explorer |
Storage
| SD Storage | Standard: 32 GB, max. support 256GB （ UHS-3 rating required ） |
| Internal Storage | 8GB |
