10.6 Gal (40L)
Capacity

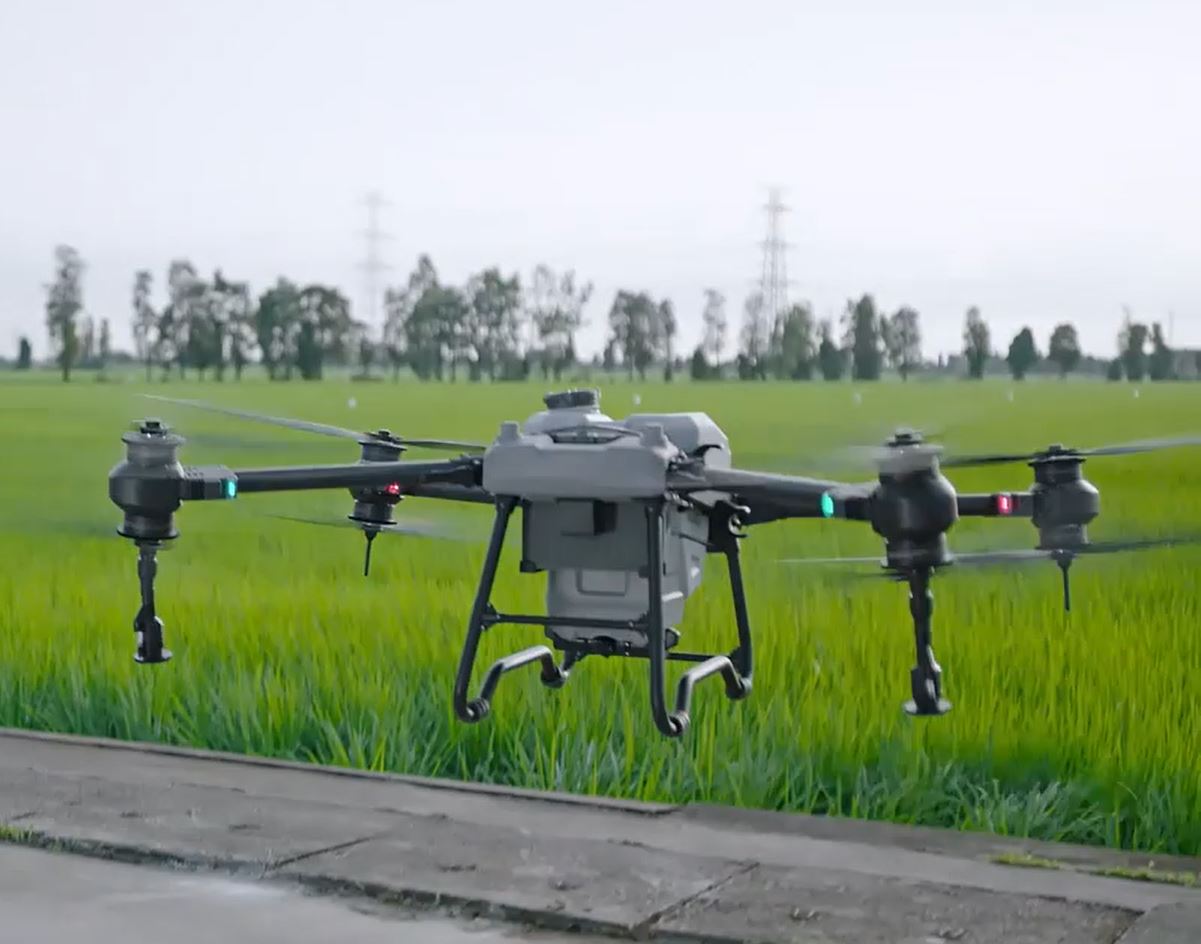

DJI Agras T40
10.6 Gal (40L)
Capacity
52.6 Acres per Hour
Coverage
3.16 gal/min (12 LPM )
Max Flow Rate
10 m/s
Max Speed
36ft
Max Swath
Active Phased Array Radar incorporated with binocular vision sensor system
Safety
10.6 Gal (40L)
Capacity
52.6 Acres per Hour
Coverage
3.16 gal/min (12 LPM )
Max Flow Rate
10 m/s
Max Speed
36ft
Max Swath
Active Phased Array Radar incorporated with binocular vision sensor system
Safety
DJI Agras T40
Full Price
Pay in One Payment
Description
Essentials
DJI Agras T40 Intelligent Flight Battery
Sale price$2,499.00
DJI Agras T30/T40/T20P Intelligent Battery Station (DJI C8000)
Sale price$1,499.00
Shipping & Return Policy
We take every precaution to ensure your order arrives safely, but in rare cases, damage may occur during shipping. The return process depends on the shipping method, and following the correct steps is essential to qualify for a replacement. From documenting damage to handling claims, our guide covers everything you need to know to protect your purchase.
For details on returns, freight shipments, and battery policies, be sure to review our full policy.
Warranty
We stand by the quality of our products and work closely with manufacturers to ensure you receive the best possible support. While some items may come with a manufacturer warranty, terms vary by product. If you receive a defective item, our team will guide you through the warranty process and coordinate with the manufacturer for repairs or replacements. Please note that Raptor does not issue refunds for damaged or defective items.
For full details on warranty coverage and the return process please see our warranty policy.
12-month limited warranty
Drone Protection Plans
Hey there! Quick question, are you still just relying on basic drone insurance? That’s a bit like bringing an umbrella to a hurricane! Protect your drone (and your sanity) with Raptor’s Drone Protection Plan. Seriously, it’s the backup you didn’t know you needed.
FAA
Our consulting services help you get the FAA spraying drone approvals you’ll need… and we do it fast!
DJI Agras T40
Sale price$13,499.00
Regular price$17,999.00
Accessories
DJI Agras D12000iE Generator for T40
Sale price$4,999.00
DJI Agras T40 Spreading System 3.0
Sale price$750.00
Regular price$1,199.00
DJI D-RTK 2 GNSS Mobile Station for Agras/Mavic/Phantom 4
Sale price$3,600.00
Product Features
Overview
52.6 Acres per Hour
Coverage
3.16 gal/min (12 LPM )
Max Flow Rate
Specifications
| Aircraft Parameters | |
| Total weight | 83.7 lbs (38 kg) (without battery) |
| 110 lbs (50 kg) (with battery) | |
| Max Takeoff Weight | Max takeoff weight for spraying: 198 lbs (90 kg) (at sea level) |
| Maximum takeoff weight for spreading: 222 lbs (101 kg) (at sea level) | |
| Max Diagonal Wheelbase | 86 inch (2184 mm) |
| Dimensions | 110 x 124 x 30.7 inch (2800 mm × 3150 mm × 780 mm) (arms & propellers unfolded) |
| 62.5 x 76 x 30.7 inch (1590 mm × 1930 mm × 780 mm) (arms unfolded, propellers folded) | |

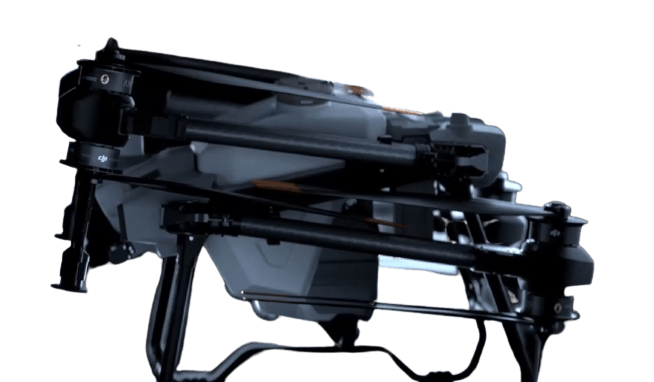

| 44 x 29.5 x 33 inch (1125 mm × 750 mm × 850 mm) (arms folded) | |
| Hovering Accuracy Range (with strong GNSS signal) | RTK positioning enabled: |
| ±10 cm horizontal, ±10 cm vertical | |
| RTK positioning disabled: | |
| ±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm) | |
| RTK/GNSS Operating Frequency | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5 |
| GNSS: GPS L1, GLONASS F1, Galileo E1, BeiDou B1 | |
| Hovering Time | Hovering without payload: 18 min (@30000 mAh & takeoff weight 110 lbs (50 kg) ) |
| Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 198 lbs (90 kg) ) | |
| Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 222 lbs (101 kg) ) | |
| Max flight radius can be set | 6,561 ft (2000 m) |
| Max Wind Resistance | 6 m/s |
| Propulsion System - Motor | |
| Stator Size | 4 x 1.2 inch (100×33 mm) |
| Motor KV Value | 48 RPM/V |
| Motor Power | 4000 W/rotor |
| Propulsion System -Propeller | |
| Diameter | 54 inch (1372 mm ) |
| Rotor Quantity | 8 |

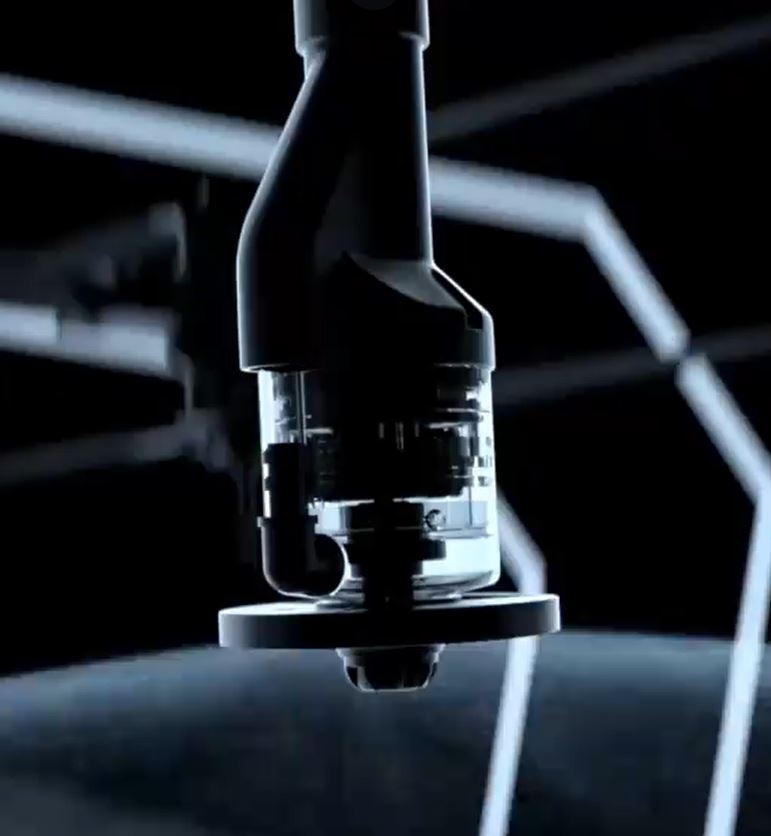

| Dual Atomized Spraying System - Operation Box | |
| Sprinkler Model | LX8060SZ |
| Sprinkler Quantity | 2 |
| Droplet Size | 50-300 μm |
| Max Effective Spray Width | 36 ft (11 m) (relative operating altitude 2.5 m, flight speed 7 m/s) |
| Dual Atomized Spraying System - Water Pump | |
| Pump Model | Magnetic Drive Impeller Pump |
| Max Flow Rate | 3.16 gal/min (12 L) |

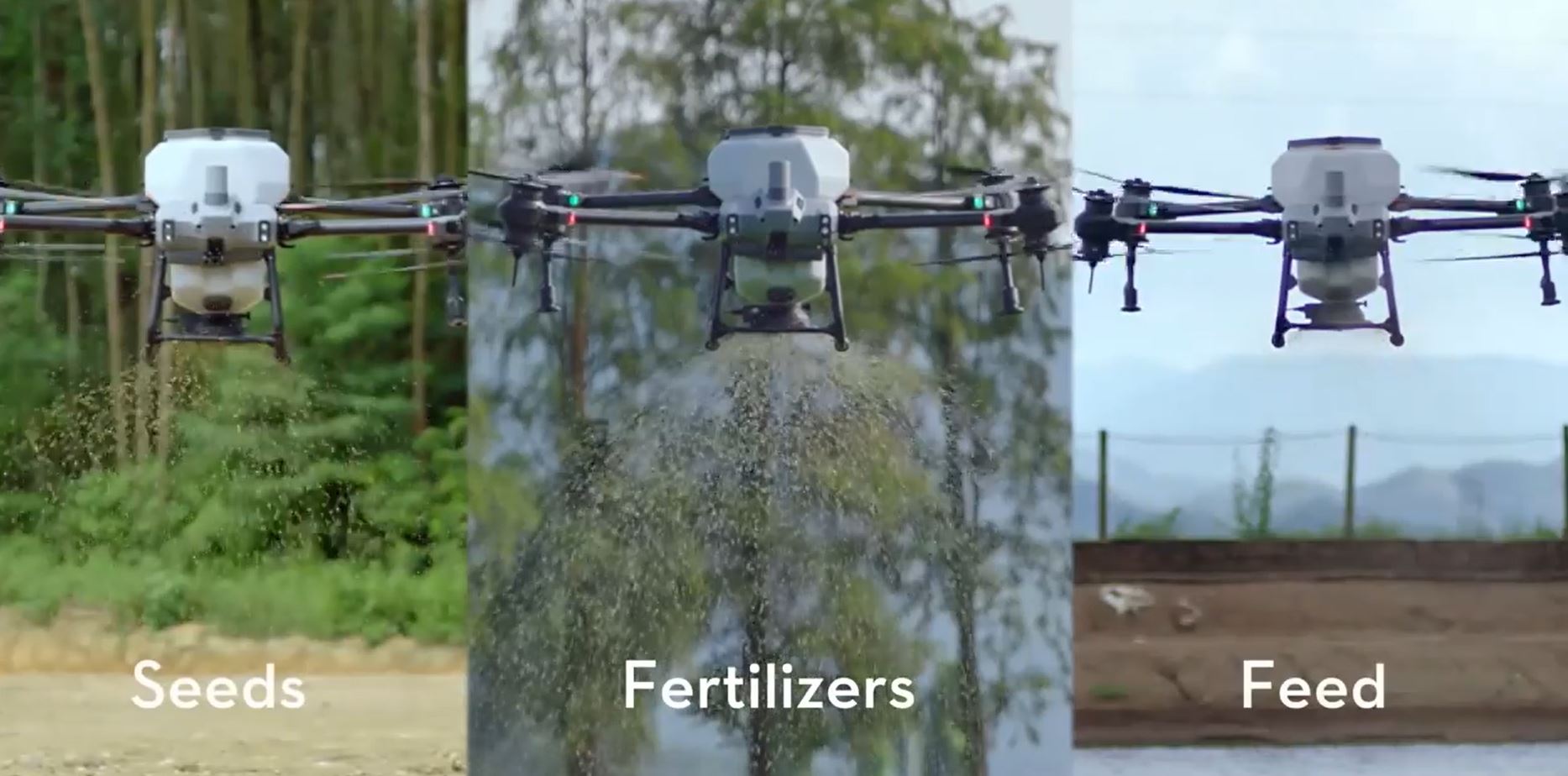

| T40 Spreading System | |
| Applicable Materials | Solid dry particles with a diameter of 0.5 to 5 mm |
| Spread Tank Volume | 18.4 gal (70 L) |
| Spread Tank Internal Load | 110 lbs (50 kg) |
| Spread Width of Spreading System | 23 ft (7 m) |
| Recommended Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Active Phased Array Omnidirectional Radar | |
| Model Number | RD2484R |
| Terrain Follow | Max incline: 30° |
| Obstacle Avoidance | Sensible distance (horizontal): 1.5-50 m |
| FOV: 360° horizontal, ±45° vertical | |
| Operating conditions: Flying higher than 1.5 m over the obstacle at a speed not exceeding 7 m/s | |
| Safe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking) | |
| Sensing direction: horizontal omnidirectional avoidance; | |
| Sensible distance (above): 1.5-30 m | |
| FOV: 45° | |
| Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m above the aircraft | |
| Safe distance: 2.5 m (distance between the top of the aircraft and the obstacle when the aircraft is hovering after braking) | |
| Sensing direction: Upward | |

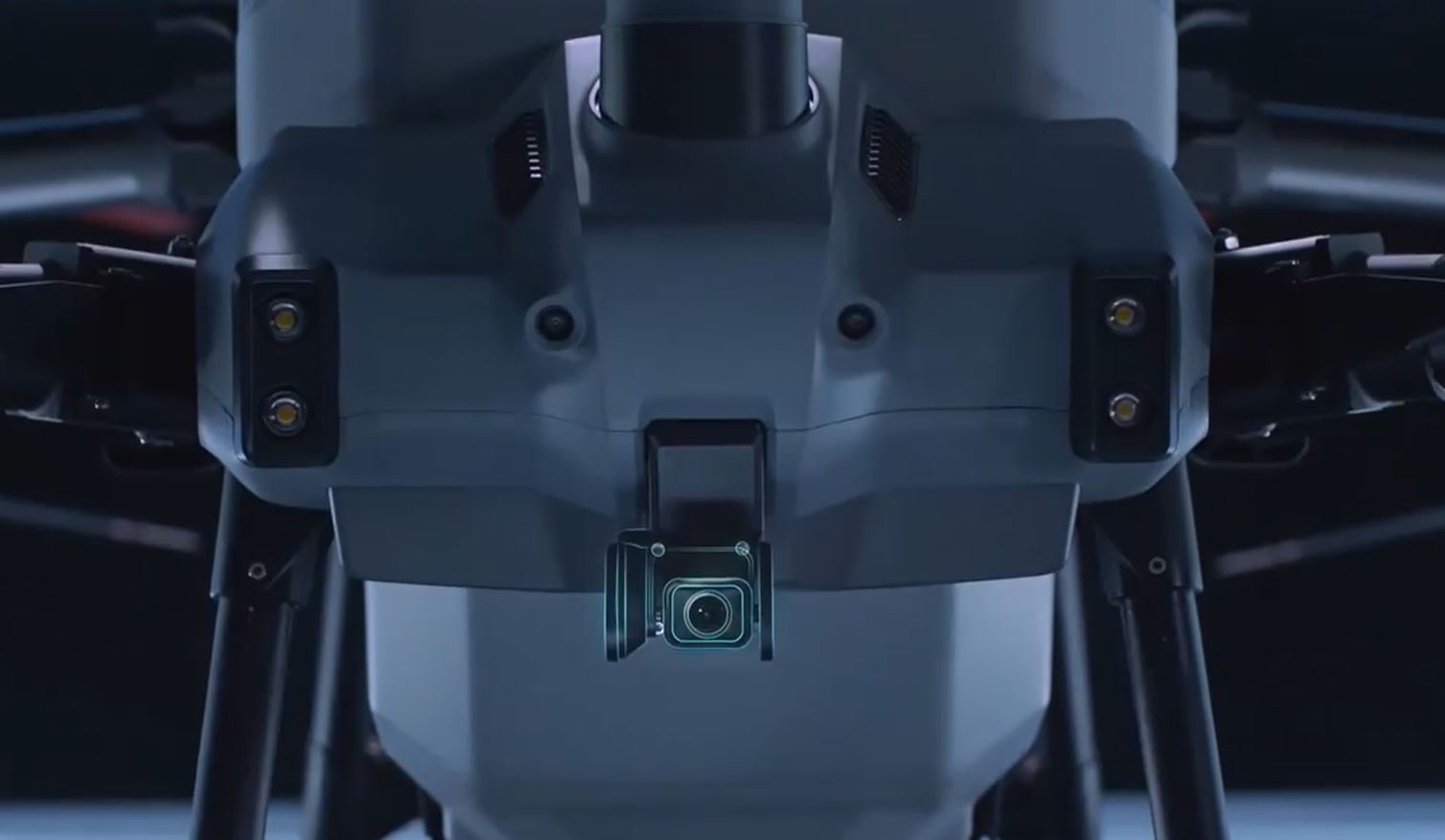

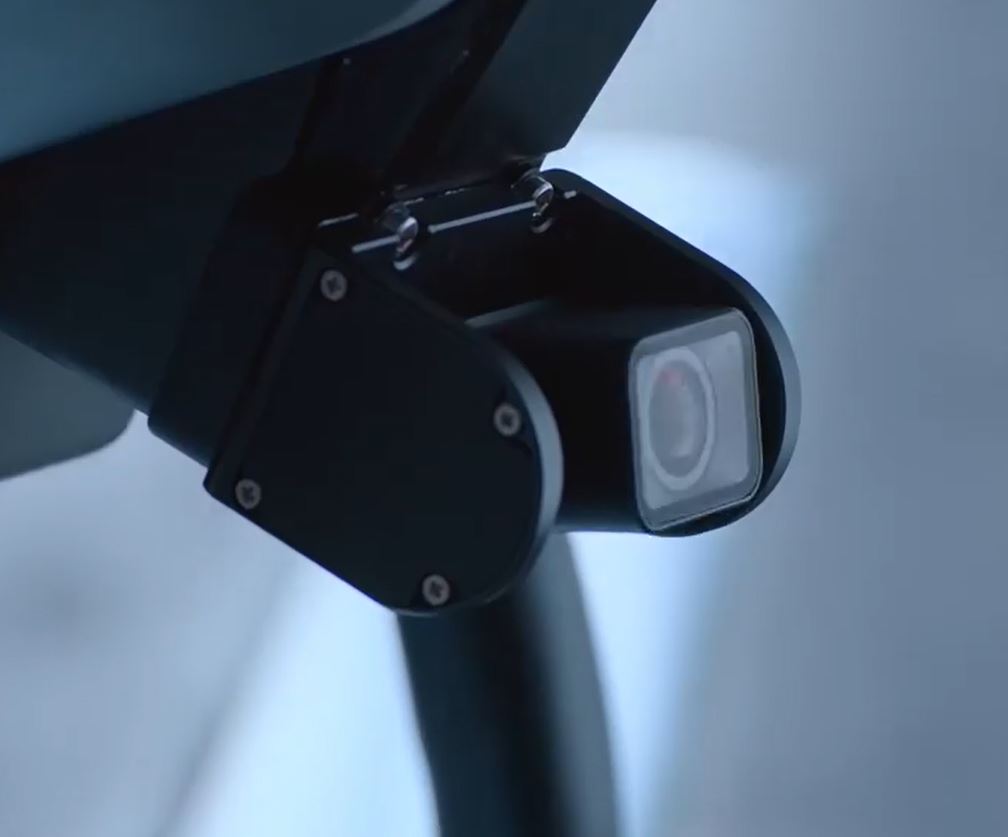

| Binocular Vision System | |
| Measurable Range | 0.4-25 m |
| Effective Sensing Speed | ≤7 m/s |
| FOV | Horizontal: 90; Vertical: 106° |
| Work Environment Requirements | Normal lighting with clearly textured surfaces |

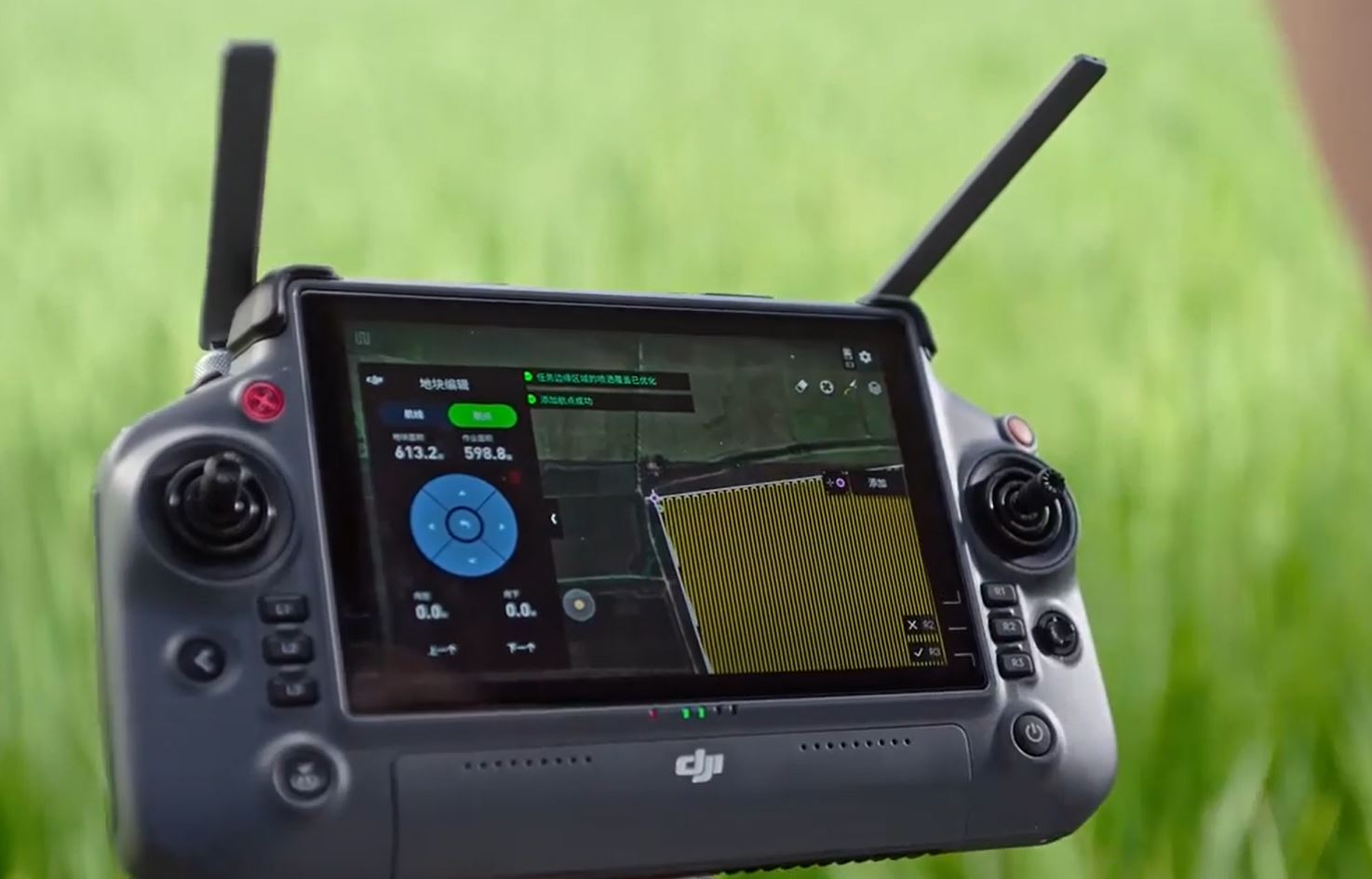

| Intelligent Remote Controller | |
| Model | RM700 |
| O3 Pro Operating Frequency | 2.4000 to 2.4835 GHz |
| 5.725 to 5.850 GHz | |
| O3 Pro Signal Effective Distance | SRRC: 5 km |
| MIC/KCC/CE: 4 km | |
| FCC: 7 km | |
| (aircraft altitude at 2.5 m in an unobstructed environment with no interference) | |
| Wi-Fi Protocol | WIFI 6 |
| Wi-Fi Operating Frequency | 2.4000 to 2.4835 GHz |
| 5.150 to 5.250 GHz | |
| 5.725 to 5.850 GHz | |
| Bluetooth Protocol | Bluetooth 5.1 |
| Bluetooth Operating Frequency | 2.4000-2.4835 GHz |
| Location | GPS + Galileo + BeiDou |
| Display Screens | 7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness |
| Supported Aircraft | AGRAS T40, AGRAS T20P |
| Operating temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -30°C to 45°C (within one month) |
| -30°C to 35°C (between one month and three months) | |
| -30°C to 30°C (between three months and one year) | |
| Charging Temperature | 5° to 40°C (41° to 104°F) |
| Internal Battery Life | 3.3 hours |
| External Battery Life | 2.7 hours |
| Charging Type | Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended. |
| Charging Time | Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off) |
| T40 Intelligent Flight Battery | |
| Model | BAX601-30000mAh-52.22V |
| Weight | Approx. 26.4 kbs (12 kg) |
| Capacity | 30000 mAh |
| Voltage | 52.22 V |
| D12000iE Multifunctional Inverter Generator | |
| Output Channel | 1. DC charging output 42-59.92V/9000W |
| 2.Power supply for air-cooled heat sink 12 V/6 A | |
| 3.AC output 230V/1500W or 120V/750W | |
| Battery Charging Time | To fully charge one battery (T40 battery) takes 9-12 mins |
| Fuel Tank Capacity | 8 gal (30 L) |
| Starting Method | Starting the Generator via the One-Button Start Switch |
| Max Power of Engine | 12000 W |
| Fuel Type | Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10% |
| (*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%) | |
| Reference Fuel Consumption | 500 ml/kWh |
| Engine Oil Model | SJ 10W-40 |
Comparison
DJI Agras T40
VS
More Info
10.6 Gal (40L)
Capacity
52.6 Acres per Hour
Coverage
3.16 gal/min (12 LPM )
Max Flow Rate
| Aircraft Parameters | |
| Total weight | 83.7 lbs (38 kg) (without battery) |
| 110 lbs (50 kg) (with battery) | |
| Max Takeoff Weight | Max takeoff weight for spraying: 198 lbs (90 kg) (at sea level) |
| Maximum takeoff weight for spreading: 222 lbs (101 kg) (at sea level) | |
| Max Diagonal Wheelbase | 86 inch (2184 mm) |
| Dimensions | 110 x 124 x 30.7 inch (2800 mm × 3150 mm × 780 mm) (arms & propellers unfolded) |
| 62.5 x 76 x 30.7 inch (1590 mm × 1930 mm × 780 mm) (arms unfolded, propellers folded) | |
| 44 x 29.5 x 33 inch (1125 mm × 750 mm × 850 mm) (arms folded) | |
| Hovering Accuracy Range (with strong GNSS signal) | RTK positioning enabled: |
| ±10 cm horizontal, ±10 cm vertical | |
| RTK positioning disabled: | |
| ±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm) | |
| RTK/GNSS Operating Frequency | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5 |
| GNSS: GPS L1, GLONASS F1, Galileo E1, BeiDou B1 | |
| Hovering Time | Hovering without payload: 18 min (@30000 mAh & takeoff weight 110 lbs (50 kg) ) |
| Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 198 lbs (90 kg) ) | |
| Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 222 lbs (101 kg) ) | |
| Max flight radius can be set | 6,561 ft (2000 m) |
| Max Wind Resistance | 6 m/s |
| Propulsion System - Motor | |
| Stator Size | 4 x 1.2 inch (100×33 mm) |
| Motor KV Value | 48 RPM/V |
| Motor Power | 4000 W/rotor |
| Propulsion System -Propeller | |
| Diameter | 54 inch (1372 mm ) |
| Rotor Quantity | 8 |
| Dual Atomized Spraying System - Operation Box | |
| Sprinkler Model | LX8060SZ |
| Sprinkler Quantity | 2 |
| Droplet Size | 50-300 μm |
| Max Effective Spray Width | 36 ft (11 m) (relative operating altitude 2.5 m, flight speed 7 m/s) |
| Dual Atomized Spraying System - Water Pump | |
| Pump Model | Magnetic Drive Impeller Pump |
| Max Flow Rate | 3.16 gal/min (12 L) |
| T40 Spreading System | |
| Applicable Materials | Solid dry particles with a diameter of 0.5 to 5 mm |
| Spread Tank Volume | 18.4 gal (70 L) |
| Spread Tank Internal Load | 110 lbs (50 kg) |
| Spread Width of Spreading System | 23 ft (7 m) |
| Recommended Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Active Phased Array Omnidirectional Radar | |
| Model Number | RD2484R |
| Terrain Follow | Max incline: 30° |
| Obstacle Avoidance | Sensible distance (horizontal): 1.5-50 m |
| FOV: 360° horizontal, ±45° vertical | |
| Operating conditions: Flying higher than 1.5 m over the obstacle at a speed not exceeding 7 m/s | |
| Safe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking) | |
| Sensing direction: horizontal omnidirectional avoidance; | |
| Sensible distance (above): 1.5-30 m | |
| FOV: 45° | |
| Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m above the aircraft | |
| Safe distance: 2.5 m (distance between the top of the aircraft and the obstacle when the aircraft is hovering after braking) | |
| Sensing direction: Upward | |
| Binocular Vision System | |
| Measurable Range | 0.4-25 m |
| Effective Sensing Speed | ≤7 m/s |
| FOV | Horizontal: 90; Vertical: 106° |
| Work Environment Requirements | Normal lighting with clearly textured surfaces |
| Intelligent Remote Controller | |
| Model | RM700 |
| O3 Pro Operating Frequency | 2.4000 to 2.4835 GHz |
| 5.725 to 5.850 GHz | |
| O3 Pro Signal Effective Distance | SRRC: 5 km |
| MIC/KCC/CE: 4 km | |
| FCC: 7 km | |
| (aircraft altitude at 2.5 m in an unobstructed environment with no interference) | |
| Wi-Fi Protocol | WIFI 6 |
| Wi-Fi Operating Frequency | 2.4000 to 2.4835 GHz |
| 5.150 to 5.250 GHz | |
| 5.725 to 5.850 GHz | |
| Bluetooth Protocol | Bluetooth 5.1 |
| Bluetooth Operating Frequency | 2.4000-2.4835 GHz |
| Location | GPS + Galileo + BeiDou |
| Display Screens | 7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness |
| Supported Aircraft | AGRAS T40, AGRAS T20P |
| Operating temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -30°C to 45°C (within one month) |
| -30°C to 35°C (between one month and three months) | |
| -30°C to 30°C (between three months and one year) | |
| Charging Temperature | 5° to 40°C (41° to 104°F) |
| Internal Battery Life | 3.3 hours |
| External Battery Life | 2.7 hours |
| Charging Type | Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended. |
| Charging Time | Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off) |
| T40 Intelligent Flight Battery | |
| Model | BAX601-30000mAh-52.22V |
| Weight | Approx. 26.4 kbs (12 kg) |
| Capacity | 30000 mAh |
| Voltage | 52.22 V |
| D12000iE Multifunctional Inverter Generator | |
| Output Channel | 1. DC charging output 42-59.92V/9000W |
| 2.Power supply for air-cooled heat sink 12 V/6 A | |
| 3.AC output 230V/1500W or 120V/750W | |
| Battery Charging Time | To fully charge one battery (T40 battery) takes 9-12 mins |
| Fuel Tank Capacity | 8 gal (30 L) |
| Starting Method | Starting the Generator via the One-Button Start Switch |
| Max Power of Engine | 12000 W |
| Fuel Type | Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10% |
| (*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%) | |
| Reference Fuel Consumption | 500 ml/kWh |
| Engine Oil Model | SJ 10W-40 |
|

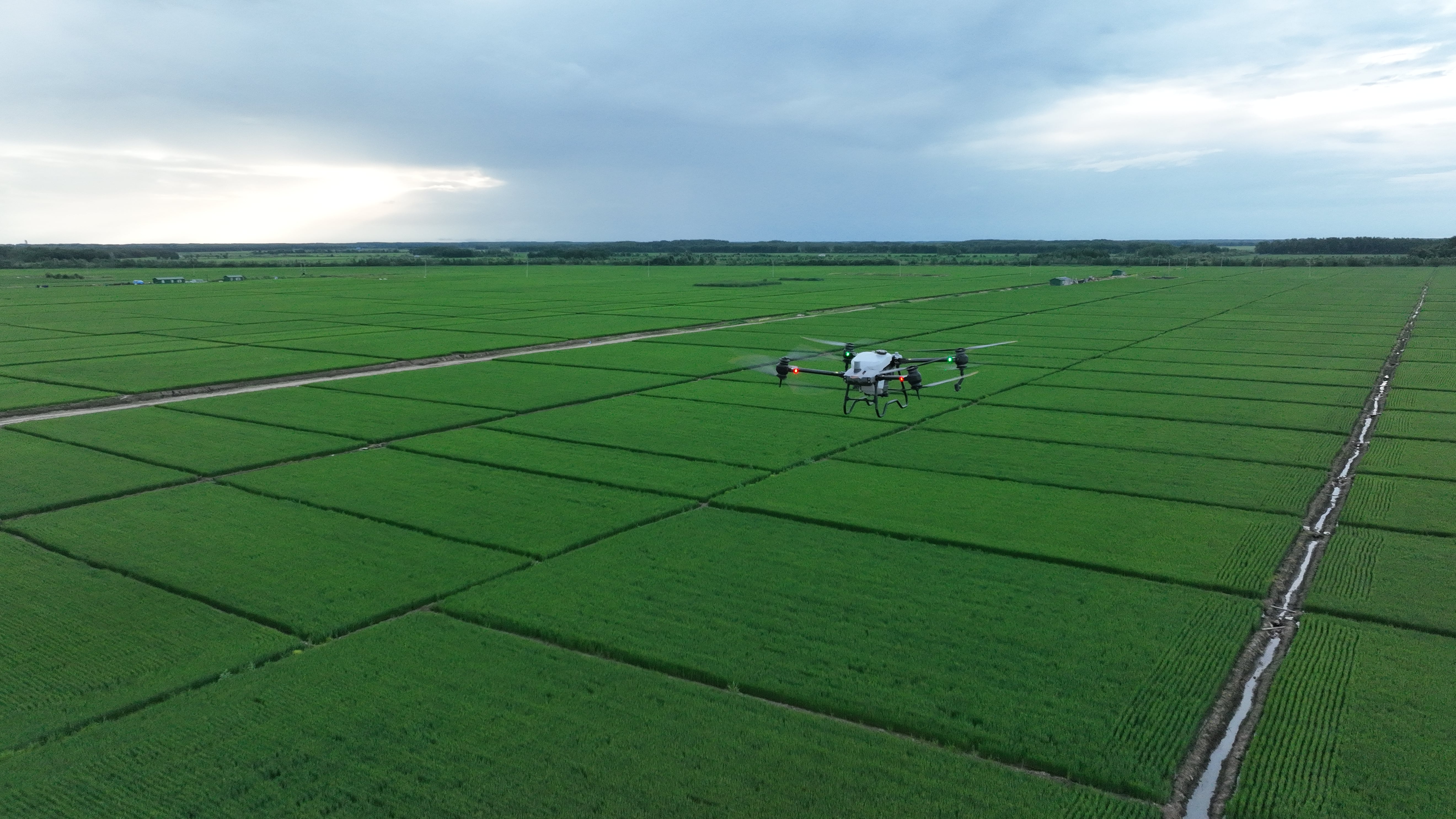

DJI Agras T40
|
|---|
Frequently Asked Questions
You could! Depends on when you want to get operational - new drones require new FAA approvals and that can take an entire season. The current tech is absolutely incredible, you'll get your money out of it either way.
Yes, we offer diagnostic and repair services for DJI drones. Whether you need troubleshooting support or professional repairs, we’ve got you covered.
You can order propellers, batteries, and other essential parts directly from our website. If you need help finding the right ones, our team is happy to assist.
Some parts are cross-compatible, but not all. We recommend checking your drone’s model specifications or reaching out to our team to ensure you get the right fit.
We offer a wide range of DJI replacement parts, including propellers, batteries, motors, landing gear, and more. Check our Parts section or contact us for compatibility assistance.
Check Out Our Available Kits:
XAG P150 (Spray All Day Kit)
Sale price$42,999.00
XAG P100 PRO (Spray All Day Kit) Now Includes Upgraded 60L/18.5 Gal Tank!!
Sale price$32,599.00
Raptor HD580 (Ready to Spray Kit)
Sale price$41,999.00
XAG V40 Spray All Day kit
Sale price$12,594.00
XAG P100 Pro 2023 Upgrade Kit
Sale price$1,499.00
XAG P100 Pro 2023 2 Additional Nozzles Kits
Sale price$1,225.14
XAG P100 Pro High Performance Propeller 4 set
Sale price$498.00
DJI Agras T50 (Ready to Fly Kit)
Sale price$24,519.00
