Taking precisionAgricultureTo the next level

The Ceres Air Fleet is Growing.

New FCC + FAA compliant agricultural drones are coming soon, bringing more options to operators across America.

Ceres Air agricultural spray drone in flight over a field at sunset

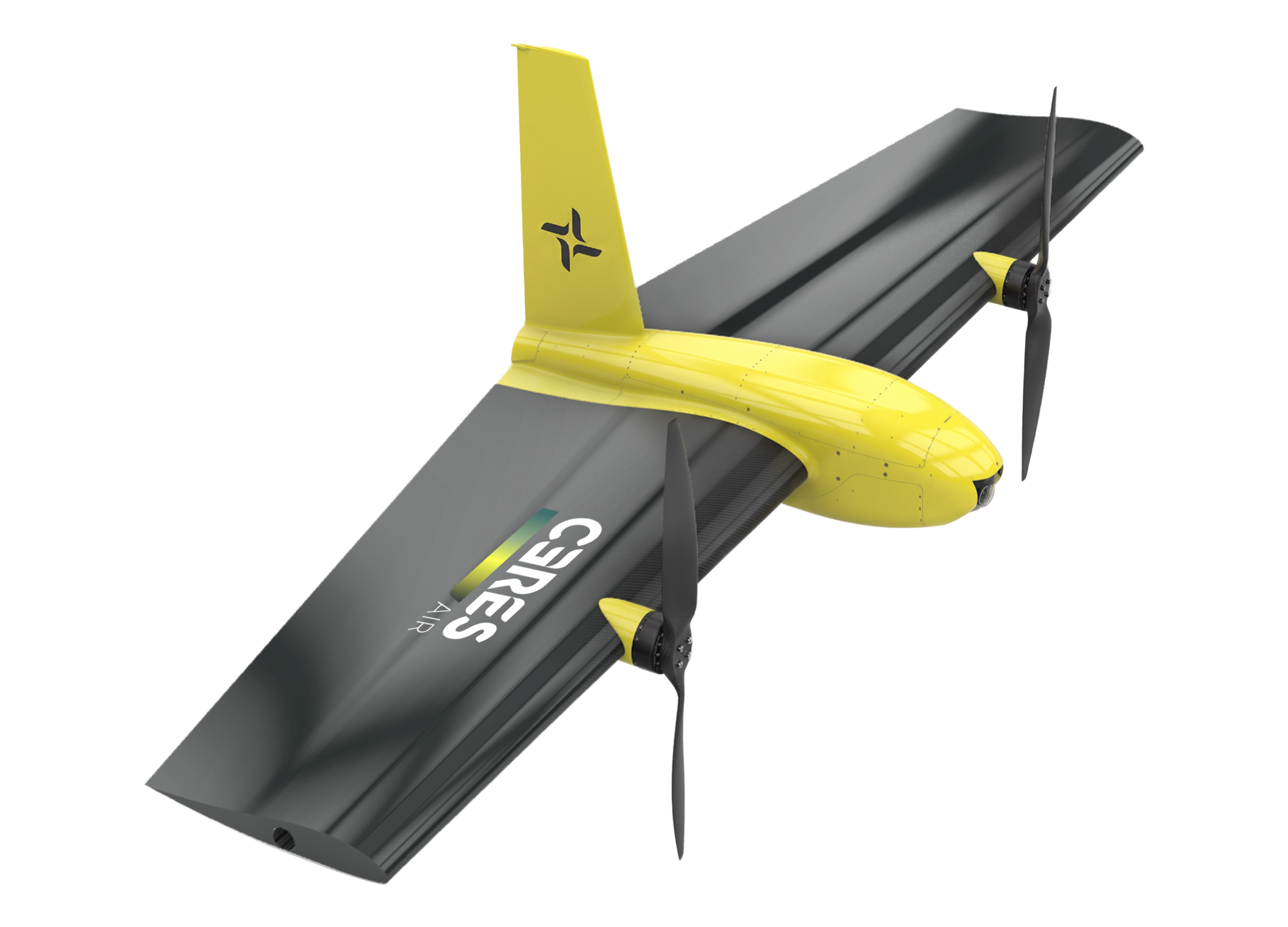

Introducing

Copperhead

2m Tailsitter
VTOL

Front

78.7 in

Back

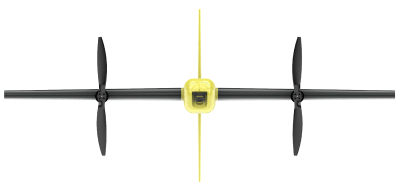

Rear elevation of the Copperhead airframe

Vertical takeoff and landing, horizontal cruise.

Over an hour on station, nearly 4.3 lbs of payload, and no runway, catapult, or net — launched and recovered from any clear patch of ground.

6.56ft

Wing span

55.9mph

Cruise

15lbs

MTOW

55-75min

Endurance

4.30lbs

Payload

49.7-68.4mi

Range, still air

WhyCopperhead

No Launch Infrastructure

Lifts off vertically on its own two motors and lands back on its tail. No runway, catapult, net or launcher — the aircraft and an operator are the whole system.

Survey-grade positioning

u-blox F9P RTK with matching base station, dual redundant heater-stabilized IMUs and dual magnetometers — accuracy that holds in high heat and sub-freezing air.

Over an hour on station

70–73 minutes with a real payload aboard and 64.6–67.7 miles of still-air range, working out to 21.7 miles and back. Payload barely costs you endurance.

Built to be repaired

PA-12 nylon airframe, Multi Jet Fusion printed, designed to a 7.5 G limit load and tolerant of hard vertical landings and tip-overs. A damaged panel is a reprint, not a rebuild.

Launch toRecovery

1

Vertical launch

Lifts off tail-down from any clear patch of ground.

2

Transition

Pitches over into wings-level flight and accelerates to cruise.

3

Cruise

55.9 mph on ≈250 W at a lift-to-drag ratio of 19.7

4

Transition back

Decelerates and pitches nose-up over the recovery point.

5

Vertical landing

Descends onto its tail. Sized for hard landing.

Specifications

Configuration Tailsitter VTOL flying wing, twin tractor

Max takeoff weight 15.0 lbs

Usable payload 4.30 lbs

Cruise speed 55.9 mph

Stall speed at MTOW 23.5 mph

Endurance at MTOW 55–75 min

Max operating range 21.7 mi (47 min out-and-back)

Propulsion 2 × Hobbywing HM6215HP · 22.0 in props

Autopilot ArduPilot on N7 · MAVLink telemetry

Airframe PA-12 nylon, Multi Jet Fusion, over a carbon spar

Landing gear Wingtip rods + rudder skid

Wingspan 6.56 ft

Empty airframe 6.97 lbs

Payload fraction 29% of gross weight

Max level speed 65 mph

Cruise L/D 19.7 : 1 (21.6 : 1 max)

Range at MTOW 49.7–68.4 mi

Cruise power 0.34 hp (250 W)

Battery 12S2P Li-ion 21700 · ≈ 390 Wh

Positioning u-blox F9P RTK + base station

Design limit load 7.5 G

Environment High heat to sub-freezing, sustained sun

What it carries

PayloadMassTakeoff weightEnduranceRange

Mapping camera Mass8.6 oz Takeoff weight11.22 lbs Endurance73 min Range67.7 mi

Camera gimbal Mass14.3 oz Takeoff weight11.60 lbs Endurance72 min Range67.1 mi

Transponder Mass2.87 lbs Takeoff weight13.56 lbs Endurance70 min Range64.6 mi

None · reference Mass0 oz Takeoff weight10.69 lbs Endurance73 min Range68.4 mi

IntroducingC6Layla

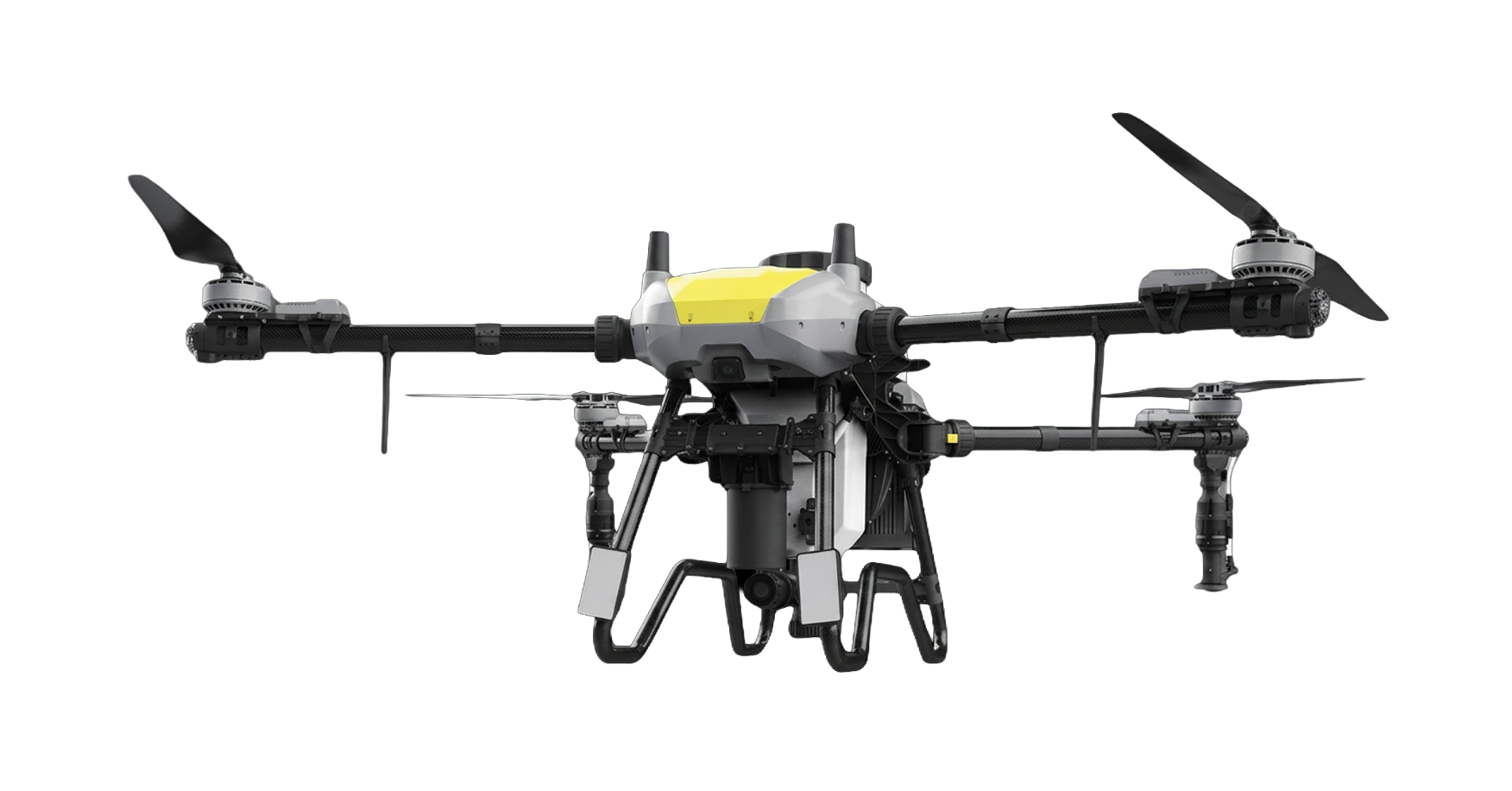

Ceres Air C6 Layla spray drone in flight

A 25 L spray platform on a four-axis truss airframe with dual centrifugal nozzles, RTK dual-antenna positioning and 360° radar obstacle avoidance — now specified with a 30 Ah 18S smart battery and a 9 kW fast charger, doubling on-board energy without extending turnaround.

30 Ah · 18S Battery9 kW Volt Smart 4.6 charger30 Ah 18S Battery

Effectof the 30AhBattery

The C6 manual specifies the HE103 pack at 1,012 Wh (14,992 mAh, 20.9 lbs). The 30 Ah 18S pack doubles on-board energy to approximately 2,025 Wh for 28.7 lbs — a step from 48.5 to 70.8 Wh/lbs in cell energy density, so the aircraft gains all of the energy for only 7.7 lbs of mass.

A grille-type structure with 700% more dissipation area and combined active and passive cooling holds the pack below 149°F, and rated life is 1,500 cycles at under 7% degradation. Paired with the 9 kW Volt Smart 4.6 charger, charge time is unchanged.

Batteryenergy

2,025Wh

was 1,012 Wh + 100%

Hover,no load

~18.2min

was 10.5 min

Hover at MTOW

~9.0min

was 4.5 min

Spray load at MTOW

~47.4lbs

was 55.1 lbs

Airframe & Flight Performance

Model C6

Structure layout 4-axis trussFoldable arms

Maximum wheelbase 79 in

Dimensions — deployed 91.3 × 105.7 × 29.3 in (L × W × H)

Dimensions — folded 39.4 × 22.4 × 29.3 in (L × W × H)

Ingress protection IP65

Maximum take-off weight 147 lbs

No-load mass (incl. battery) 100 lbs

Maximum agrochemical load approx. 47.4 lbs

Power System

Battery capacity 30 Ah · 18S

Battery energy 2,025 Wh

Specific energy 70.8 Wh/lbs

Battery type Li-ion

Number of cells 18S

Single cell voltage 3.7 V

Battery voltage 66.6 V

Maximum charging voltage 75.6 V

Maximum charging current 140 A

Battery weight 28.7 lbs

Cycle life 1,500 cycles

Thermal management Active + passive cooling

Heat dissipation area +700% vs. baseline

Mounting method Quick-plug

Remote controller,Perception & Communication

Display 6 in touch LCD, 1280 × 720

Image transmission 2.4 / 5.8 GHz dual-band

Radio link 1.2 mi

Cellular LTE-FDD / LTE-TDD / WCDMA / EVDO-CDMA / GSM

Wireless WLAN 2.4 / 5 GHz 802.11a/b/g/n · Bluetooth 2.1+EDR – 4.2 BLE

GNSS BeiDou

Battery life 3 h built-in / 4 h external

Charging Built-in 65 W USB-C · external 33.6 W cradle × 2

Working temperature −4 to 122 °F

Remote controller, Perception & Communication

Fully autonomous mission planning and execution — one operator, one aircraft, no support crew. Four flight modes — autonomous, AB, manual and manual+ — switchable in the Drone App.

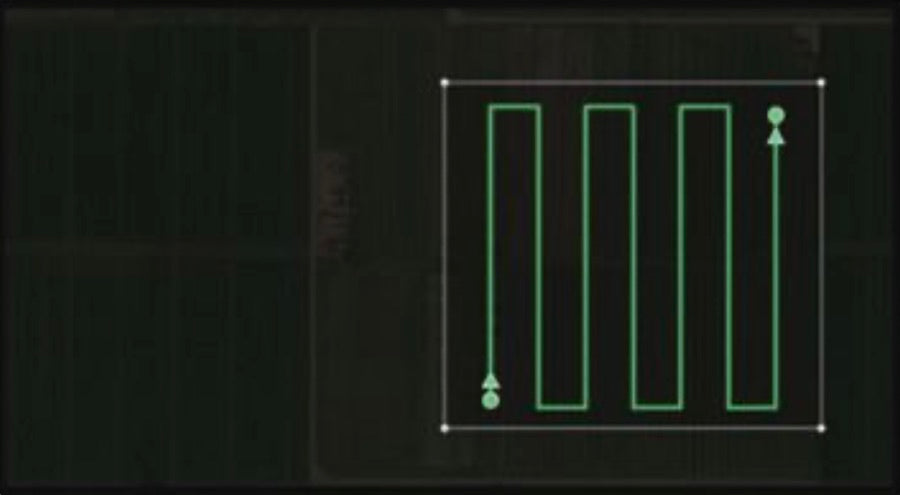

Intelligent navigation

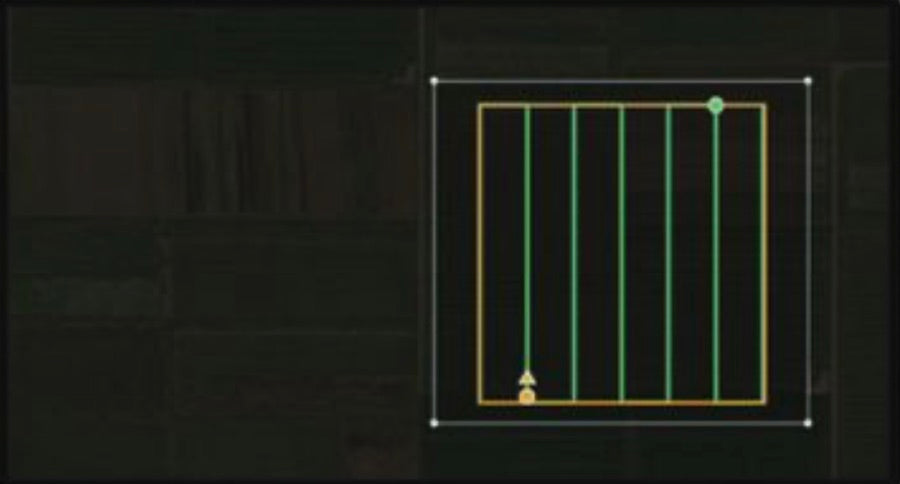

One-click edge scanning

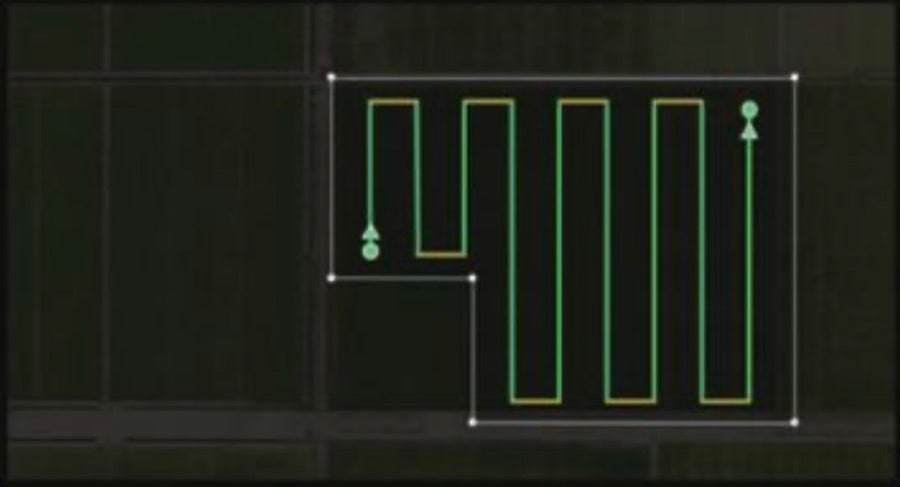

Single-side spraying

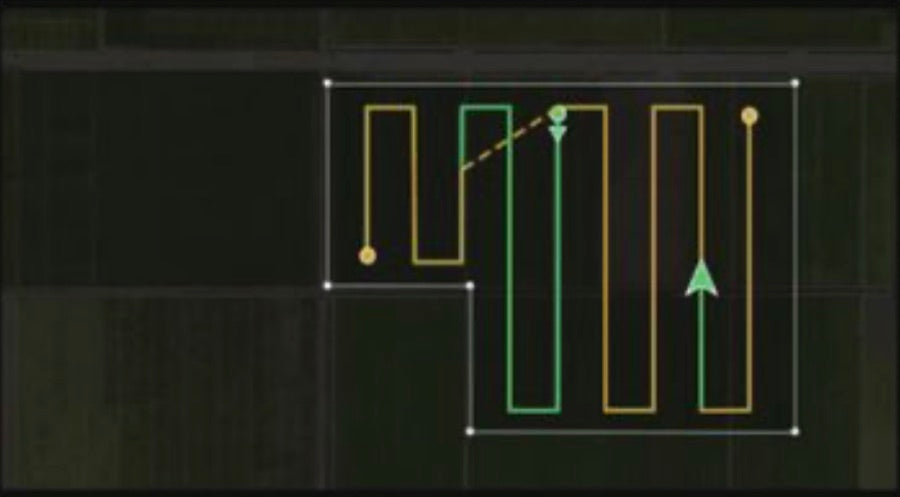

Smart endurance

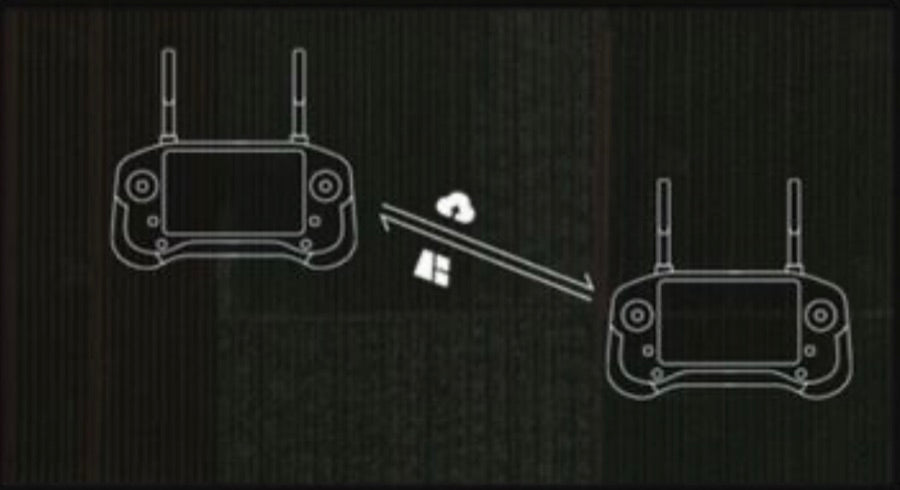

Plot sharing

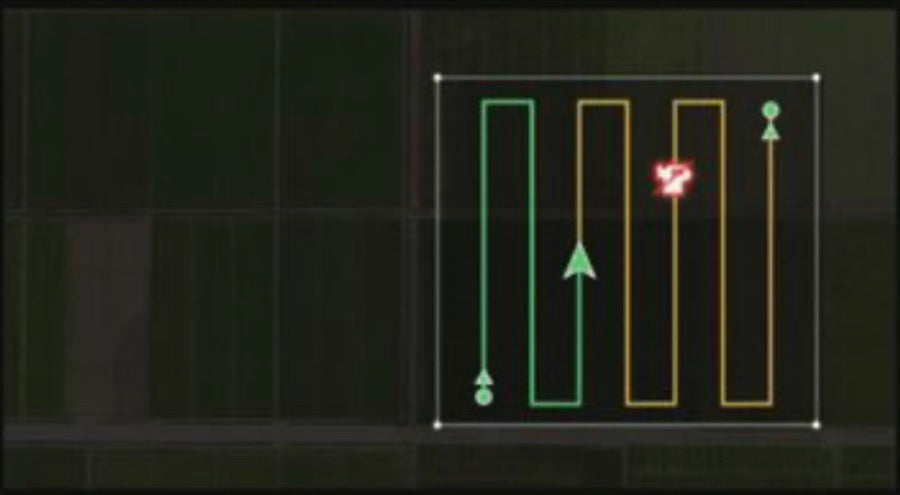

Agrochemical supply prediction

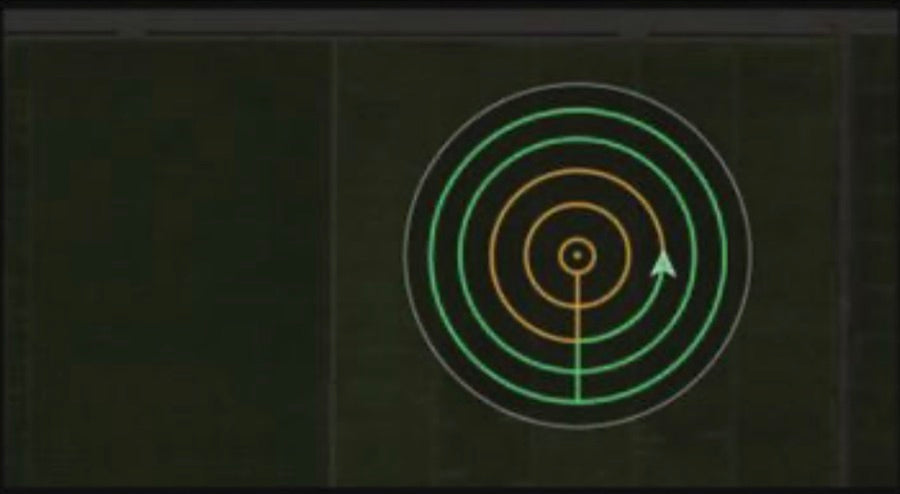

Circular flight path

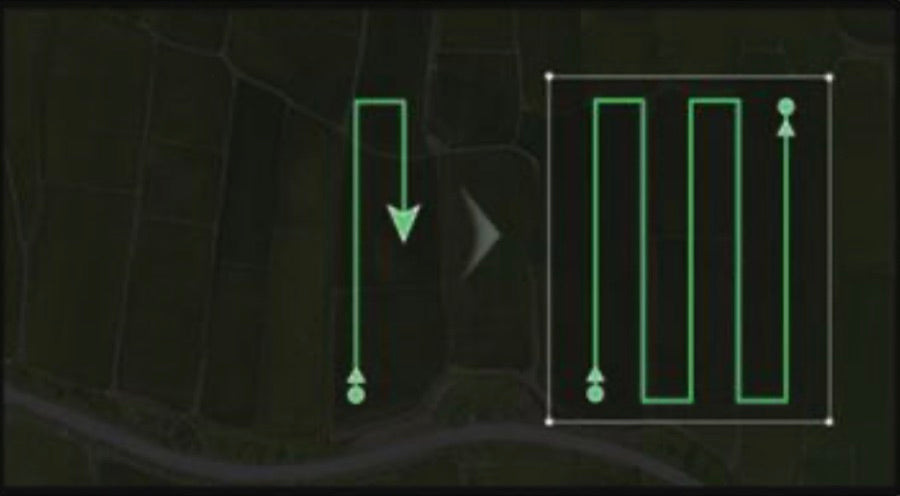

Plot generation

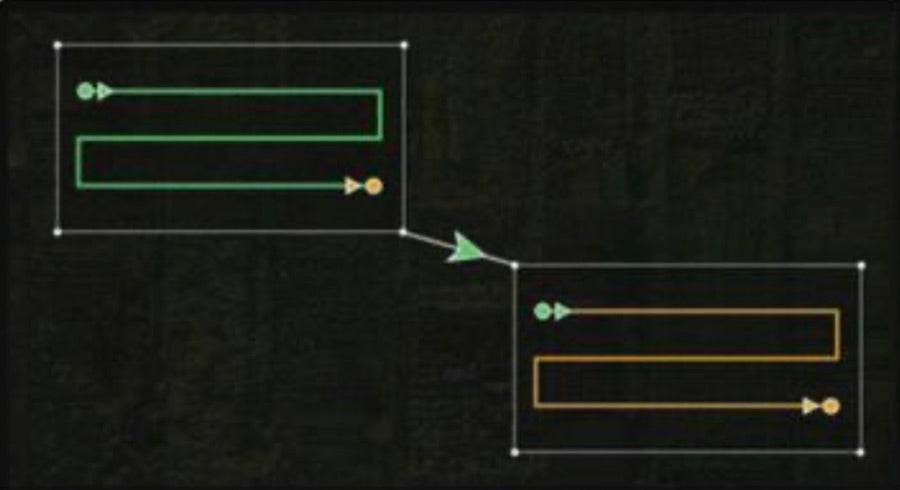

Multi-plot operation

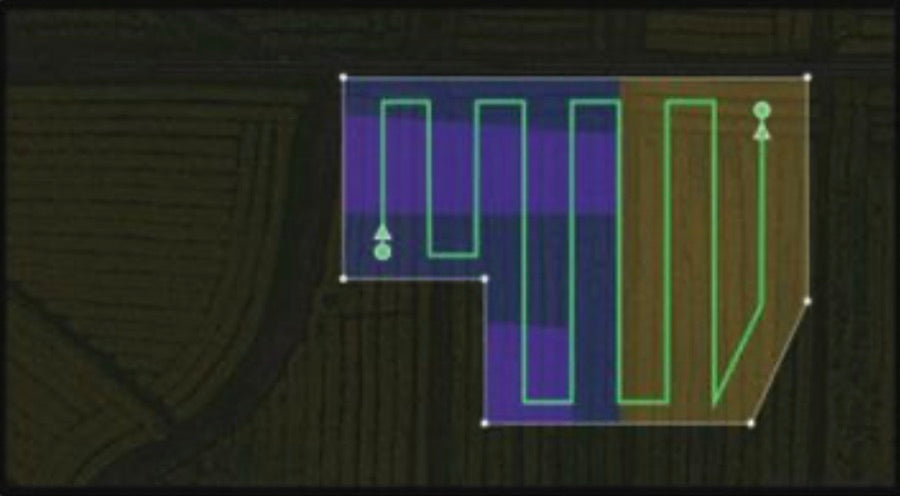

Prescription map support

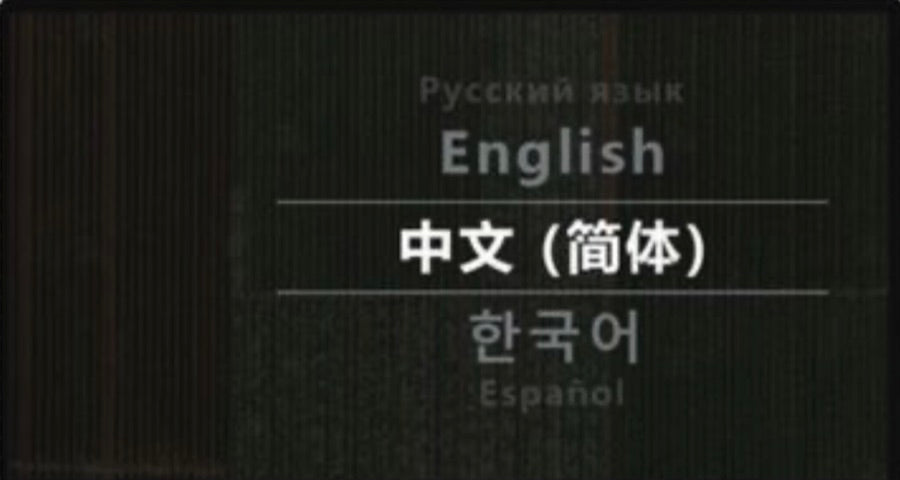

Multilingual interface

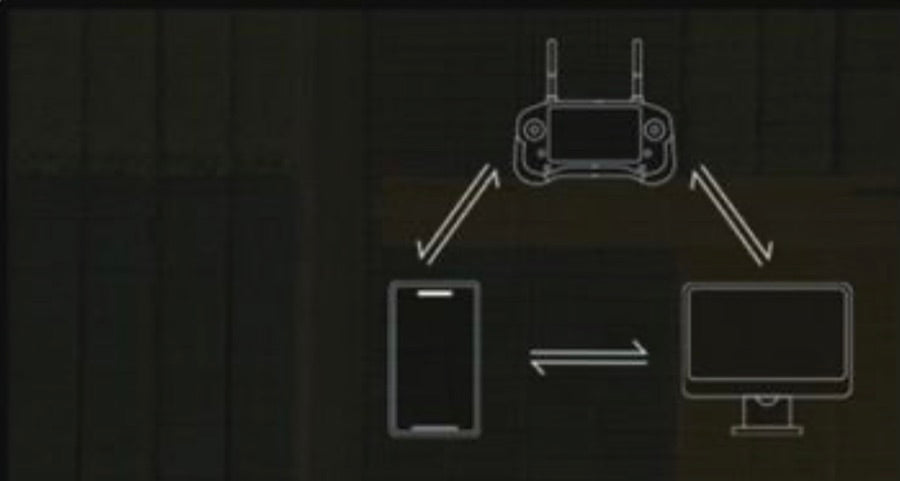

Platform interconnection

RTK dual-antenna heading
Terrain-following height hold
Lost-link return or hover
Searchlight
Network RTK / CORS (NTRIP)
Agrochemical-exhausted behaviour
Electronic fence & no-fly zones
Megaphone speaker
360° radar obstacle avoidance
Low-battery return or hover
Low-light night-vision FPV
Operation records & flight logs

Standard Package

C6 airframe × 1 — mainframe with 4-axis truss and folding arms

Smart battery × 2 — 30 Ah 18S packs

HD402 remote control kit × 1 — controller, 2 × external 21700 batteries, charging cradle, power adapter, GPS point device, LORA antenna

Volt Smart 4.6 charger × 1 — 9,000 W intelligent charger

IntroducingC70Caroline

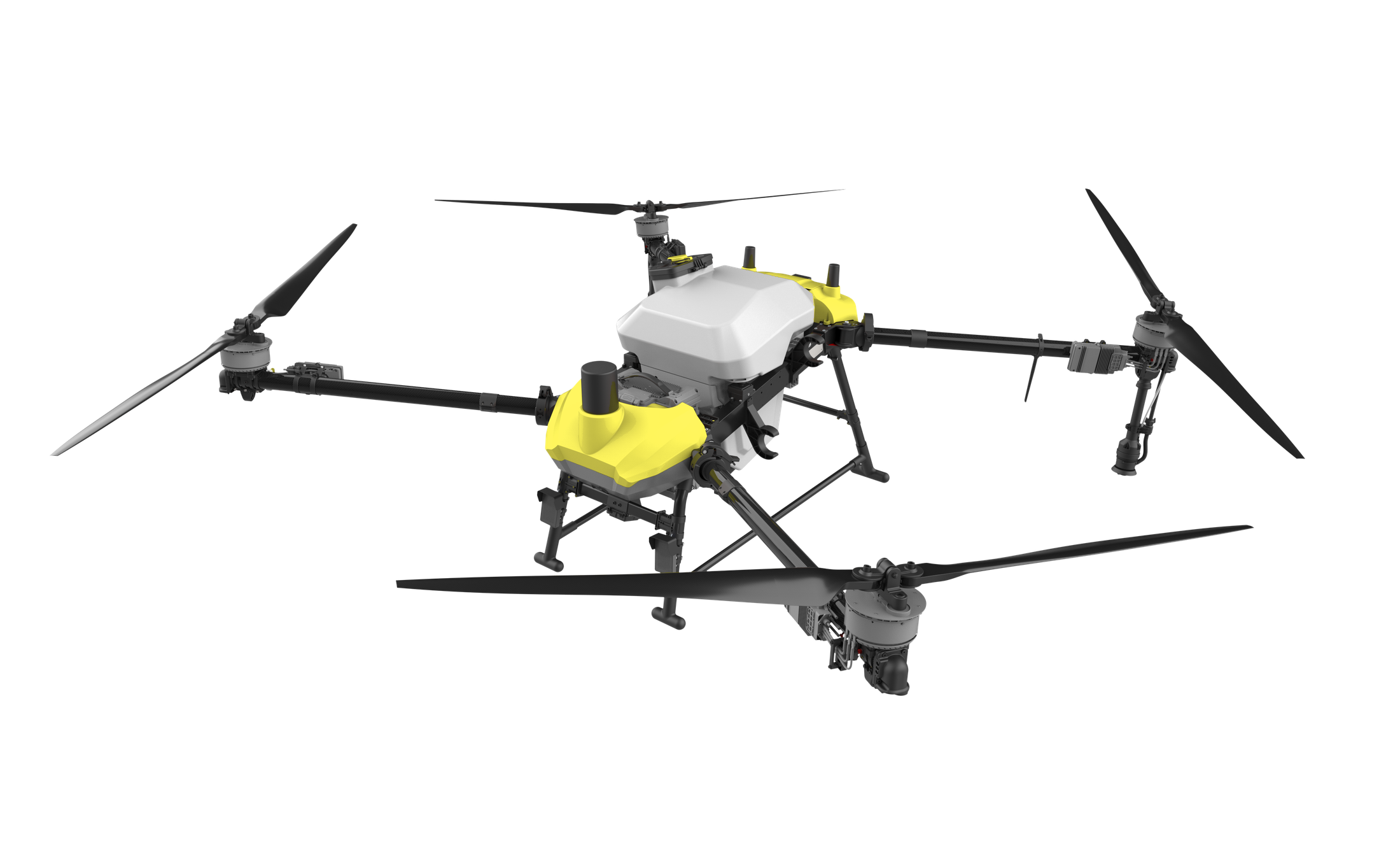

Ceres Air C70 Caroline spray drone in flight

18.5galTank capacity4 rotors

The row-crop workhorse. Same battery, same charger and the same granular spread width as its bigger sibling, in a machine half the gross weight that folds into a pickup bed.

Spray tank 18.5 gal

Max flow 40 L/min · 10.6 gpm

Swath, typical 35 ft

Payload 176 lbs

MTOW 341 lbs

Coverage 32 ha/hr

Parameter

Field efficiency

Coverage rate 32.4 ha/hr

Scenario behind it 2.4 / 5.8 GHz dual-bandFoldable arms
